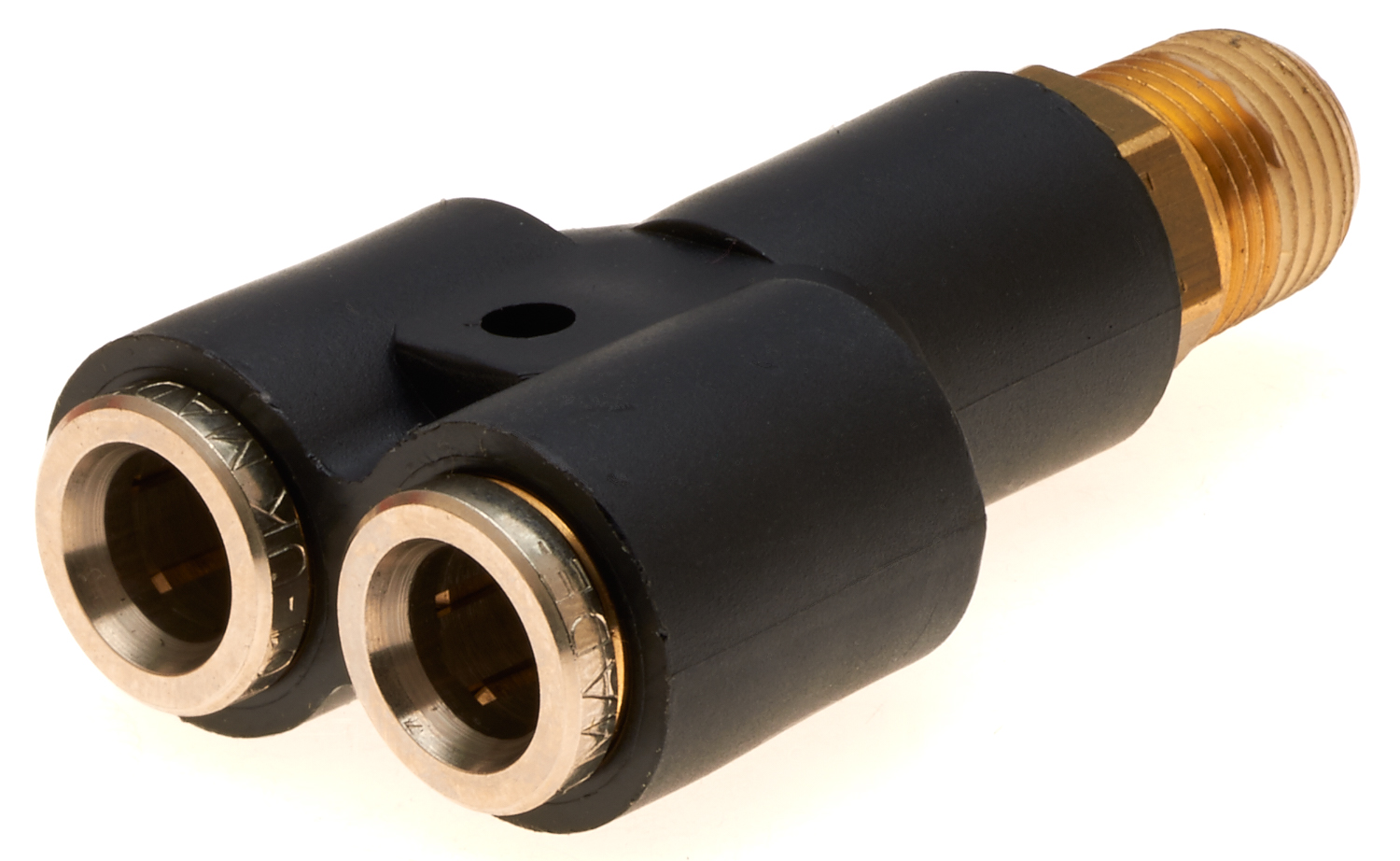

Air Brake Run Y to Male Pipe (Composite SureLok)
Write a review
Part # G56978-0204 | Line Code: GAT
brandNameImage
brandNameImage
$24.99
$24.99
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Temperature Rating -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Coupling Description Composite SureLok Air Brake Run Y to Male Pipe
Maximum Working Pressure 150
Thread Size - T1 1/8-27
Heavy Duty Supplier Yes
Material High Impact Nylon & Brass
Thread Size 1/8-27
Tube Inside Diameter (in) - A1 .25
Tube Inside Diameter (in) - A2 .25
Tube Outside Diameter (in) - A2 .25
Tube Outside Diameter (in) - A1 .25
Temperature Range -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Seal Material O-Ring - Buna N, Thread Sealant - Precote 5
Maximum Working Pressure (psi) 150
Outside Diameter .25
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Industrial Description 2MPX-4SLI-4SLI-Y
Part Terminology Hydraulic Coupling / Adapter
Features & Benefits
expand_more
Recommended for air brake systems – compressed air connectors or suspension, steering, engine, transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Composite fittings are up to 70 percent lighter than comparable brass fittings. Meets DOT FMVSS 571.106, SAE J113 and SAE J2494 impact resistance. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).
Additional Resources
expand_more

Product Documentation

Safety Data Sheet
