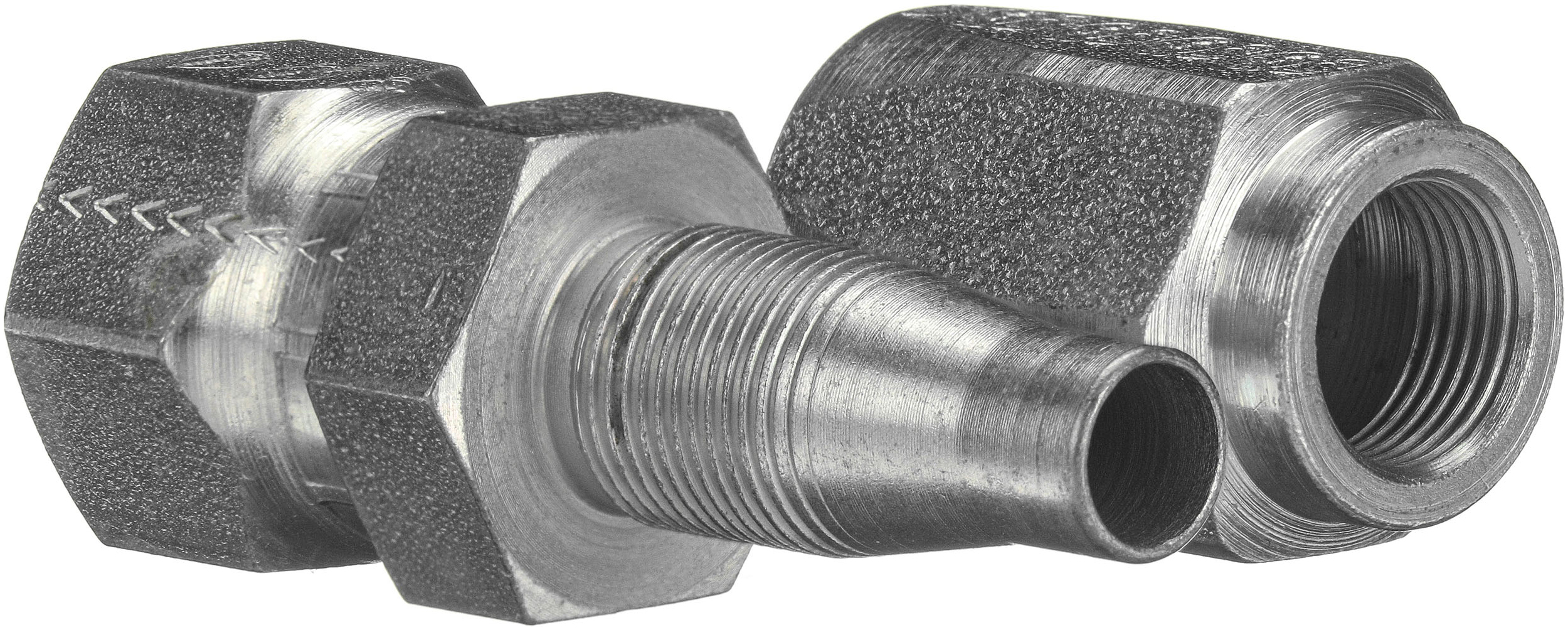

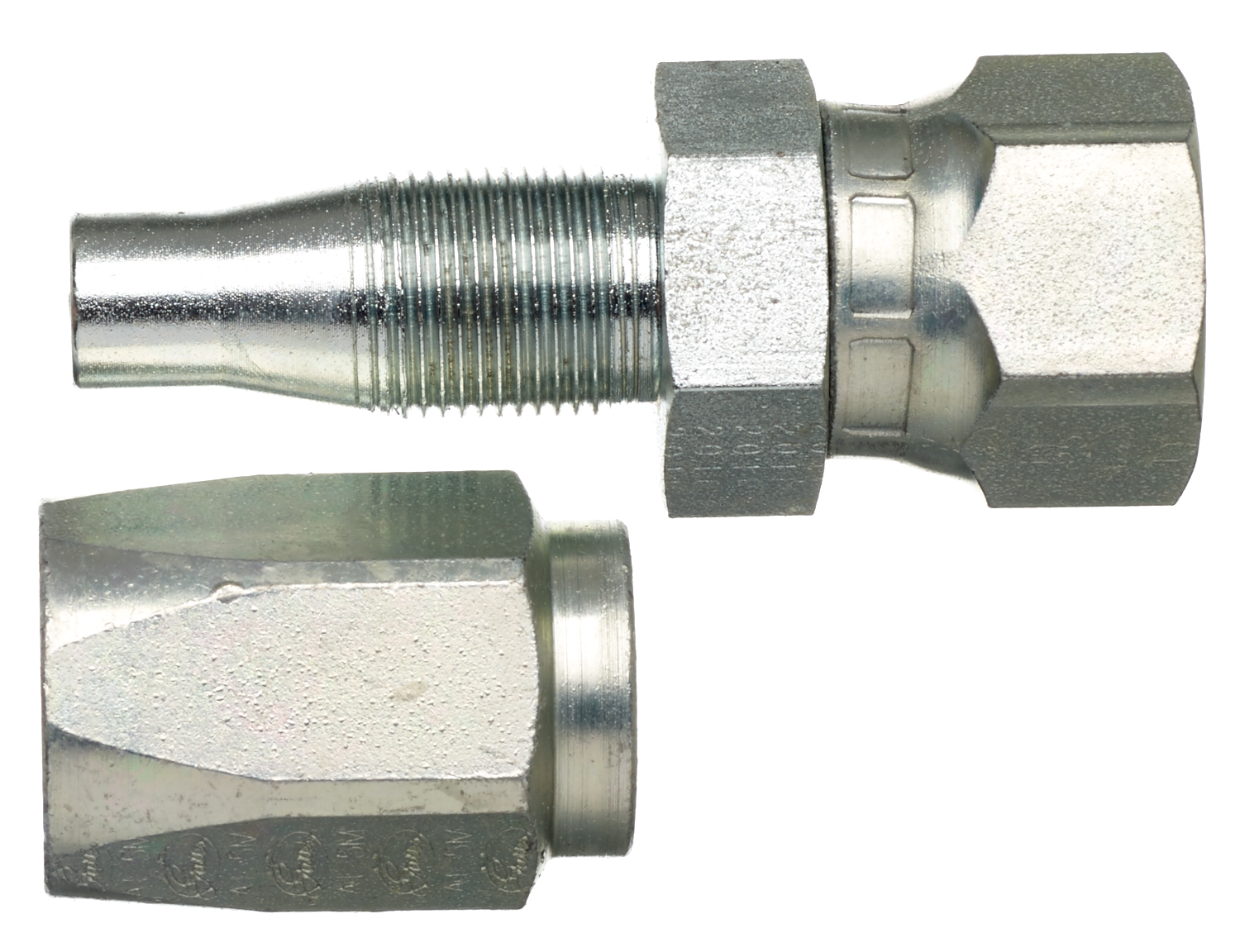

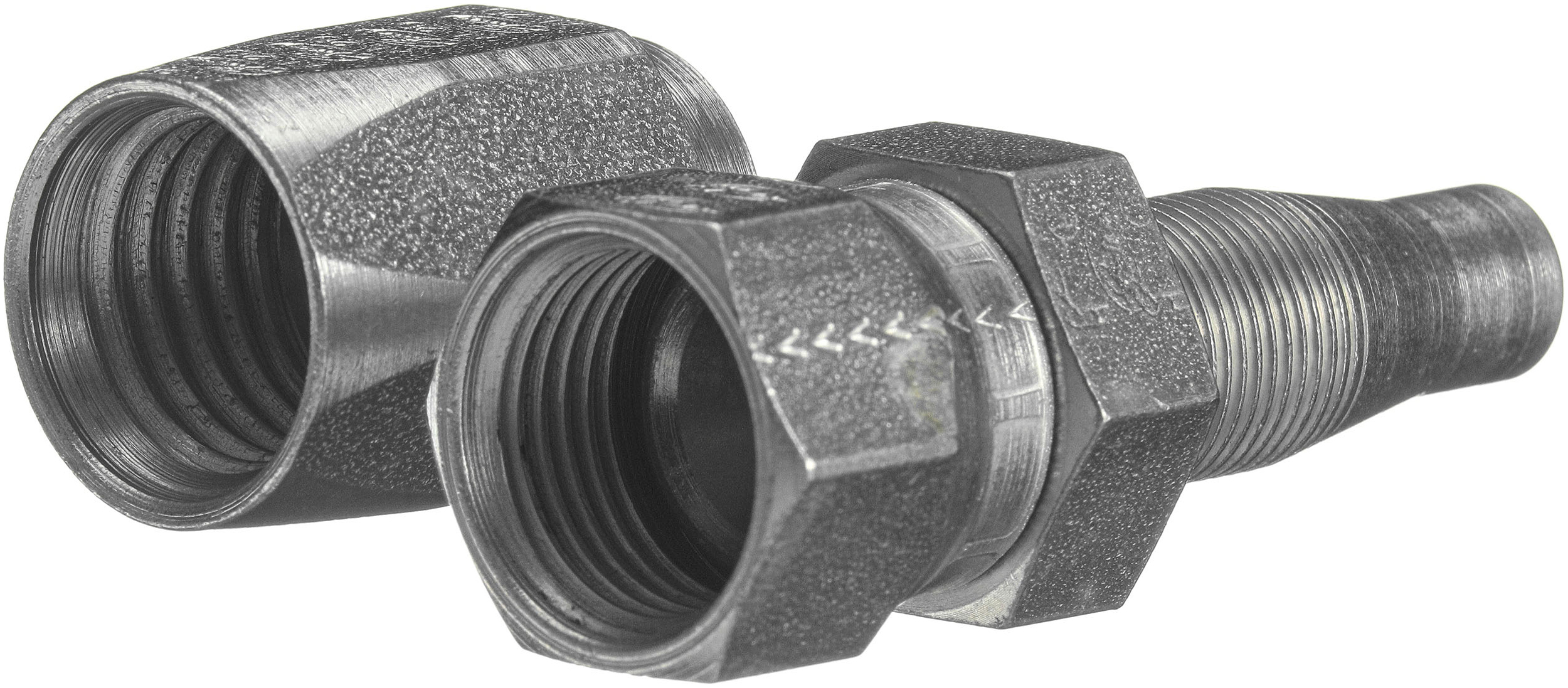

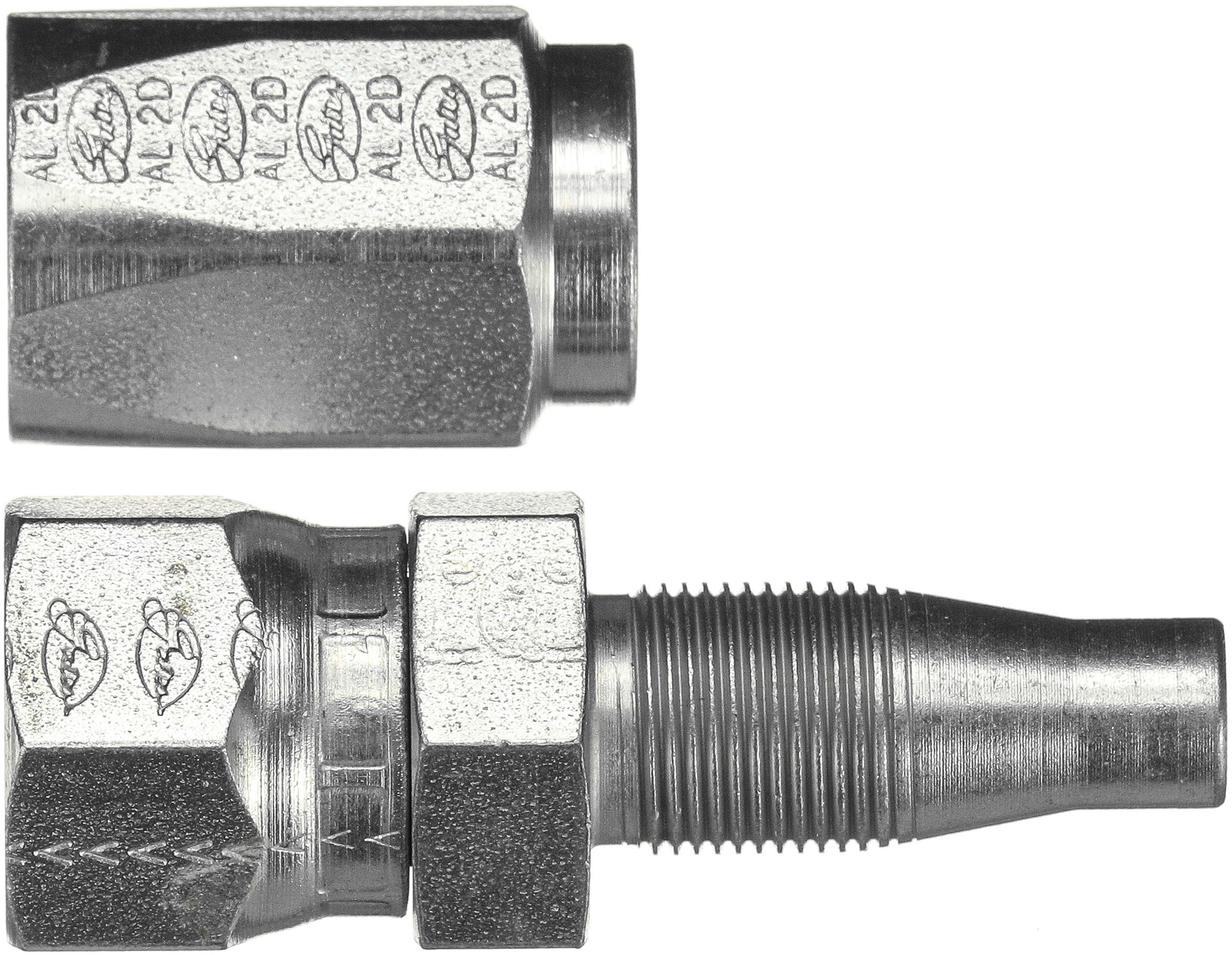

Dual Seat Female JIC 37/SAE 45 Flare Swivel - Steel (C5E Hose)
Write a review
Part # G35210-0404 | Line Code: GAT
brandNameImage
brandNameImage
$17.99
$17.99
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less

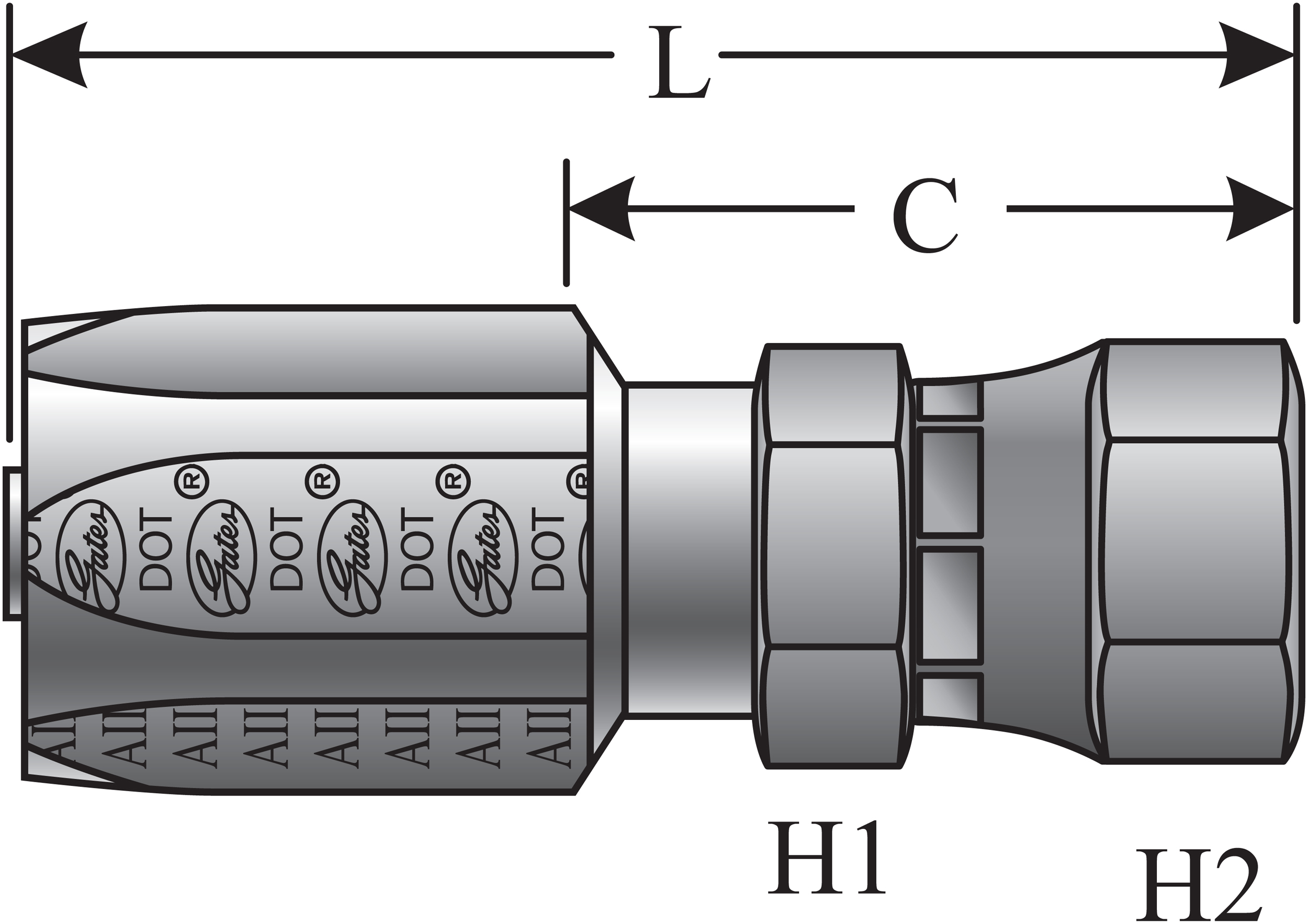

Length 1.82
Inside Diameter 4.8
Thread Size 7/16-20
Hose Inside Diameter (in) .1875
Hose Inside Diameter (mm) 4.8
Stem Hex (in) - H1 .5
Nut Hex (in) - H2 .5625
Cut Off (mm) - C 27.9
Cut Off (in) - C 1.1
Hose Recommendation Gates C5E
Industrial Description 4C5E-4RFJSX
Coupling Description Field Attach C5E Dual Seat Female JIC 37/SAE 45 Flare Swivel - Steel
Heavy Duty Supplier Yes
Length (in) 1.82
Length (MM) 46.2
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Part Terminology Hydraulic Coupling / Adapter
Features & Benefits
expand_more
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Additional Resources
expand_more

Product Documentation

Safety Data Sheet
