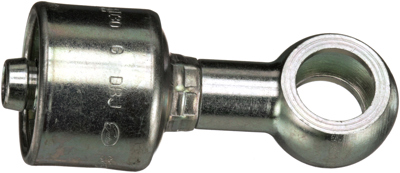

International Thread Metric 7642 DIN Banjo (MegaCrimp)
Part # G25770-0616 | Line Code: GAT
brandNameImage
brandNameImage

$43.99
$43.99
error
Not Fitted

Product Details
expand_less
Length 2.2
Inside Diameter 9.5
Bolt Hole Diameter 16.1
Hose Inside Diameter (in) .375
Hose Inside Diameter (mm) 9.5
Hose Recommendation Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Cut Off (in) - C 1.27
Hose Outside Diameter (mm) 9.5
Coupling Description MegaCrimp International Thread Metric 7642 DIN Banjo
Bolt Hole (mm) - BH 16.1
Industrial Description 6G-16DBJ
Cut Off (mm) - C 32.4
Heavy Duty Supplier Yes
Length (in) 2.2
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Length (MM) 55.8
Part Terminology Hydraulic Coupling / Adapter

Features & Benefits
expand_more
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
