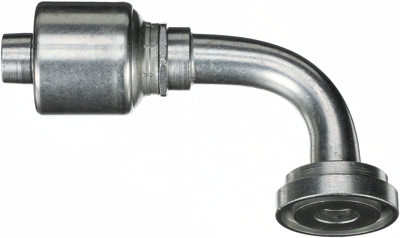

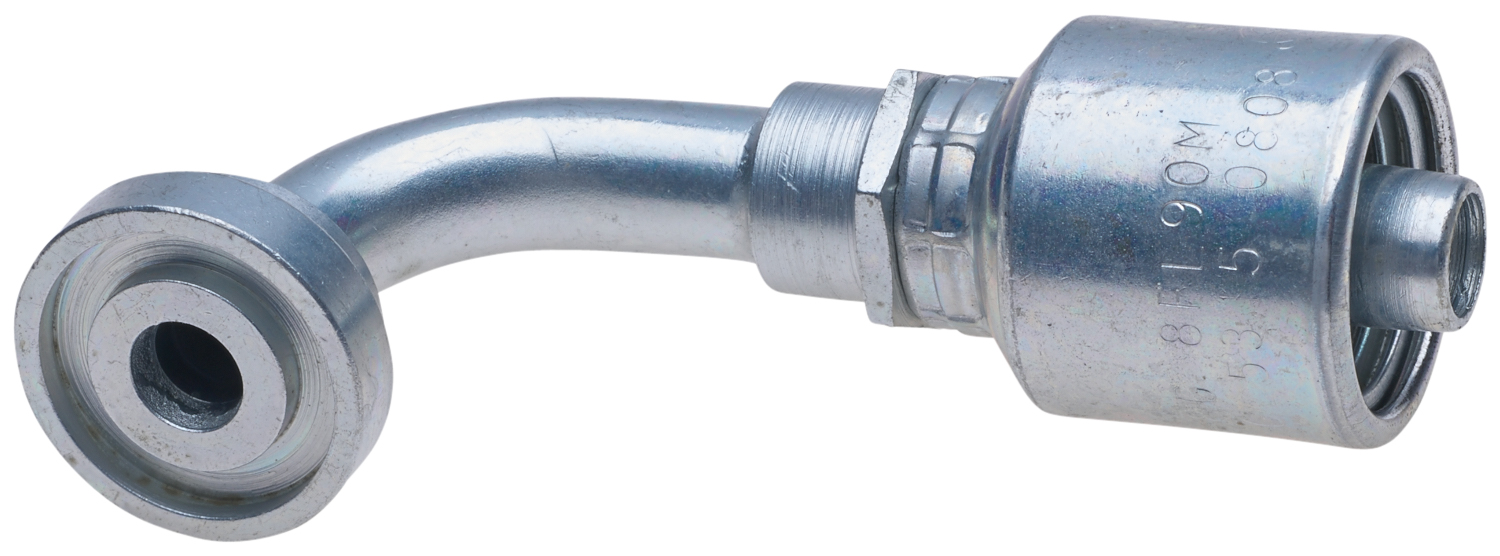

| Coupling Description | MegaCrimp Code 61 O-Ring Flange - 90 Bent Tube |
| Seal Type | O-Ring |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .75 |
| Drop (in) - T | 2.28 |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Flange Head Thickness (in) - F | .27 |
| Inside Diameter | .75 |
| Flange Head Thickness (mm) - F | 6.9 |
| Length (in) | 4.54 |
| Drop (mm) - T | 58 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 64.3 |
| Industrial Description | 12G-12FL90MXBULK |
| Cut Off (in) - C | 2.53 |
| Hose Inside Diameter (mm) | 19.1 |
| Drop Length | 58 |
| Flange Thickness | 6.9 |
| Termination | Code 61 |
| Bent Tube Angle | 90 |
| Length | 4.54 |
| Flange Diameter (mm) - M | 38.1 |
| Flange Diameter | 1.5 |
| O-Ring Location | Flange Groove |
| Length (MM) | 115.3 |
| Flange Diameter (in) - M | 1.5 |
| Part Terminology | Hydraulic Coupling / Adapter |
