| Coupling Description | MegaCrimp Male O-Ring Boss Swivel - 90 Block |

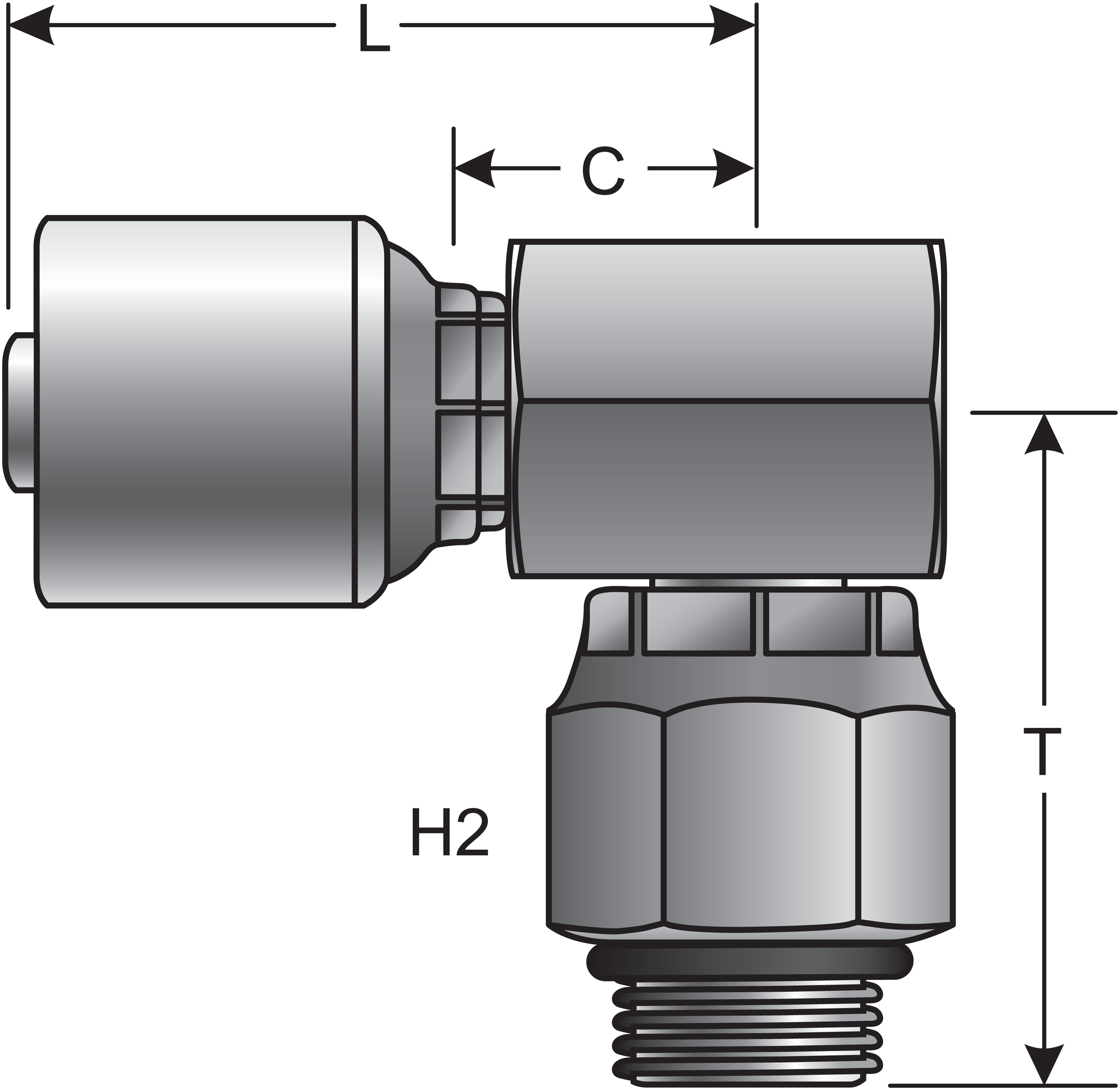

| Cut Off (in) - C | 1.67 |
| Hose Inside Diameter (mm) | 15.9 |
| Seal Type | O-Ring |
| Nut Hex (in) - H2 | 1 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .625 |
| Drop Length | 46 |
| Thread Size | 7/8-14 |
| Gender | Male |
| Drop (in) - T | 1.81 |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Bent Tube Angle | 90 Block |
| Length | 3.15 |
| Inside Diameter | .625 |
| O-Ring Location | Outside O-Ring Boss |
| Length (in) | 3.15 |
| Swivel | Yes |
| Drop (mm) - T | 46 |
| Length (MM) | 79.9 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 42.4 |
| Industrial Description | 10G-10MBX90BLL |
| Part Terminology | Hydraulic Coupling / Adapter |
