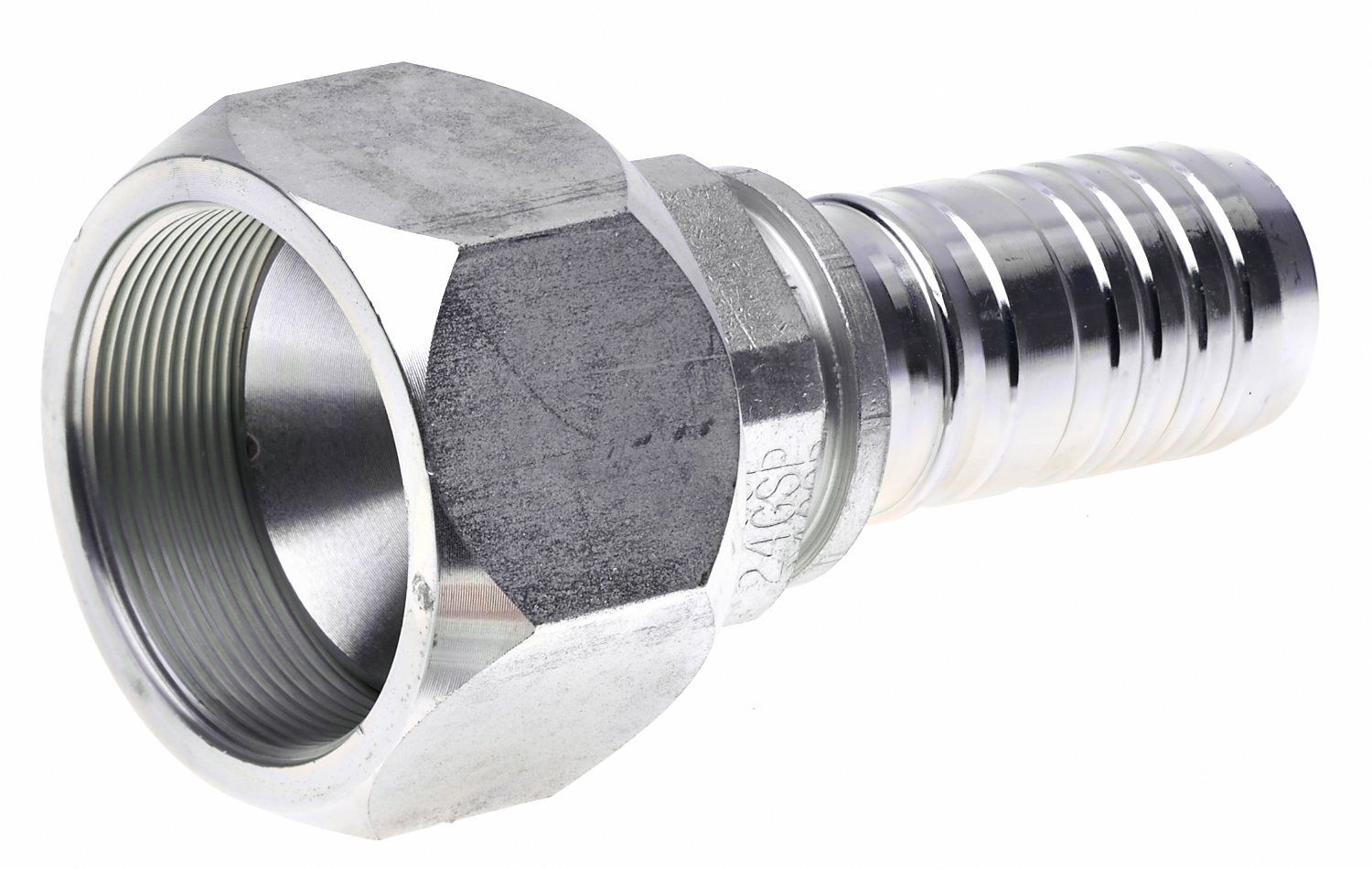

Female JIC 37 Flare Swivel (GlobalSpiral Plus)
Write a review
Part # G22170-3232X | Line Code: GAT
brandNameImage
brandNameImage
$183.99
$183.99
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Coupling Description GlobalSpiral Plus Female JIC 37 Flare Swivel
Cut Off (in) - C 3.17
Hose Inside Diameter (mm) 50.8
Nut Hex (in) - H2 2.95
Heavy Duty Supplier Yes
Hose Inside Diameter (in) 2
Thread Size 2 1/2-12
Hose Recommendation Gates Extremely High Pressure Hydraulic Hose (-24 & -32)
Length 6.8
Stem Hex (in) - H1 2.56
Inside Diameter 2
Length (in) 6.8
Length (MM) 172.7
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Cut Off (mm) - C 80.6
Industrial Description 32GSP-32FJX XBULK
Part Terminology Hydraulic Coupling / Adapter
Features & Benefits
expand_more
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system.
Additional Resources
expand_more

Product Documentation

Safety Data Sheet
