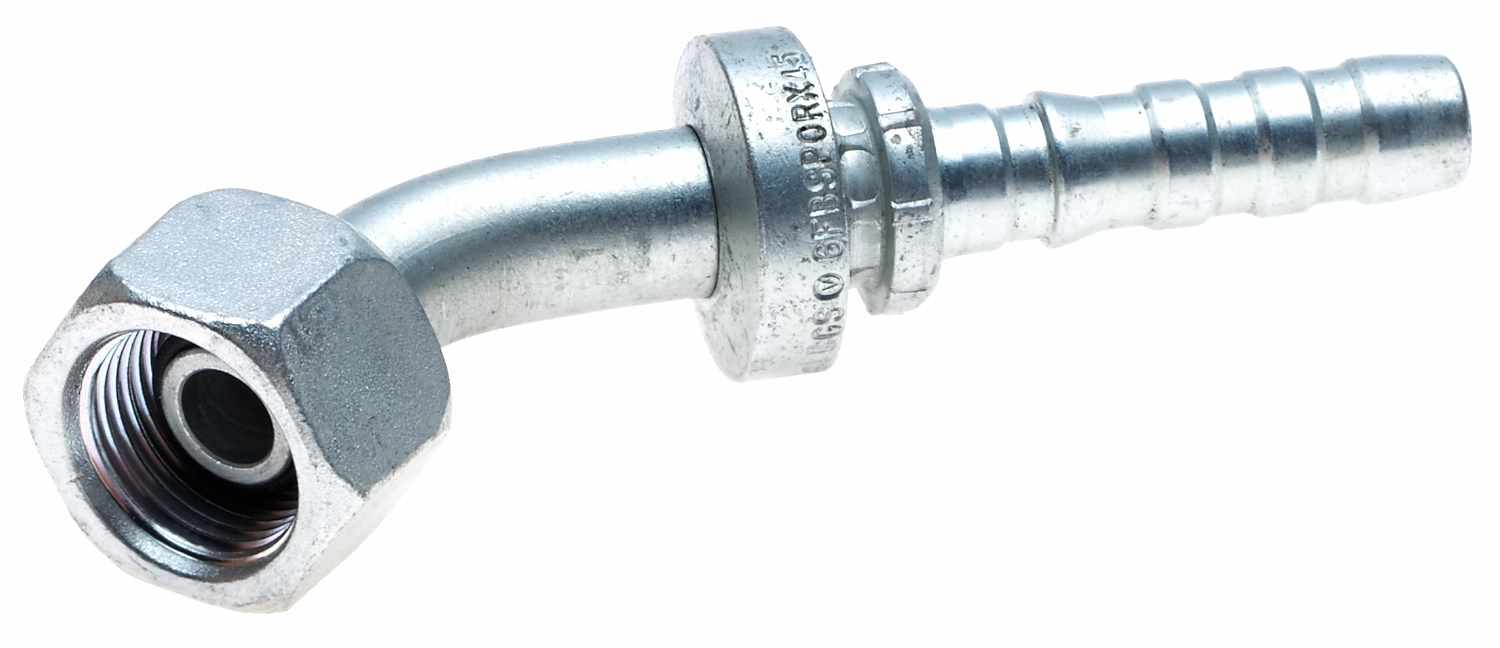

Female British Std Parallel Pipe O-Ring Swivel-45 Bent Tube (GlobalSpiral)
Write a review
Part # G20831-1010 | Line Code: GAT
brandNameImage
brandNameImage
$86.99
$86.99
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Coupling Description GlobalSpiral Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube
Cut Off (in) - C 2.67
Hose Inside Diameter (mm) 15.9
Heavy Duty Supplier Yes
Hose Inside Diameter (in) .625
Drop Length 1.04
Thread Size 5/8-14
Drop (in) - T 1.04
Hose Recommendation All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Nut Hex (mm) - H2 30
Length 4.2
Inside Diameter 15.9
Length (in) 4.2
Drop (mm) - T 26.4
Length (MM) 106.7
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Cut Off (mm) - C 67.7
Industrial Description 10GS-10FBSPORX45
Part Terminology Hydraulic Coupling / Adapter
Features & Benefits
expand_more
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. S, M and L Drops and Hex per ISO Working Draft 12151-6. MGS Couplings for use with MC4-20 Crimper Only.
Additional Resources
expand_more

Product Documentation

Safety Data Sheet
