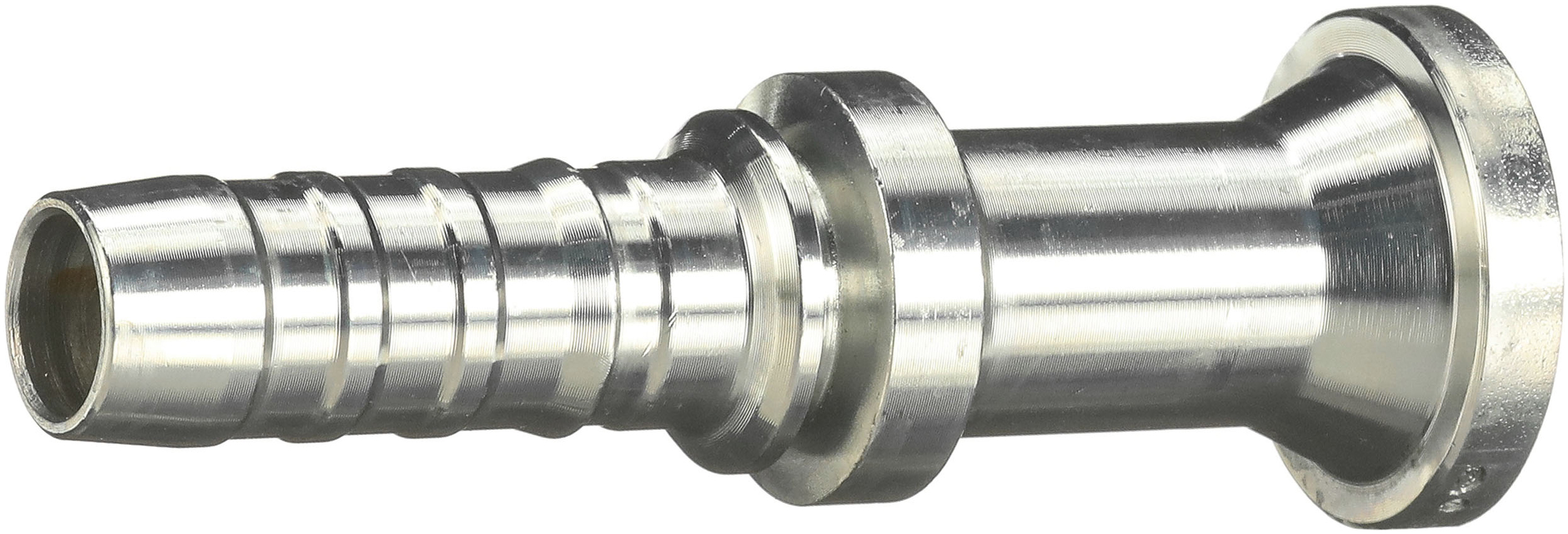

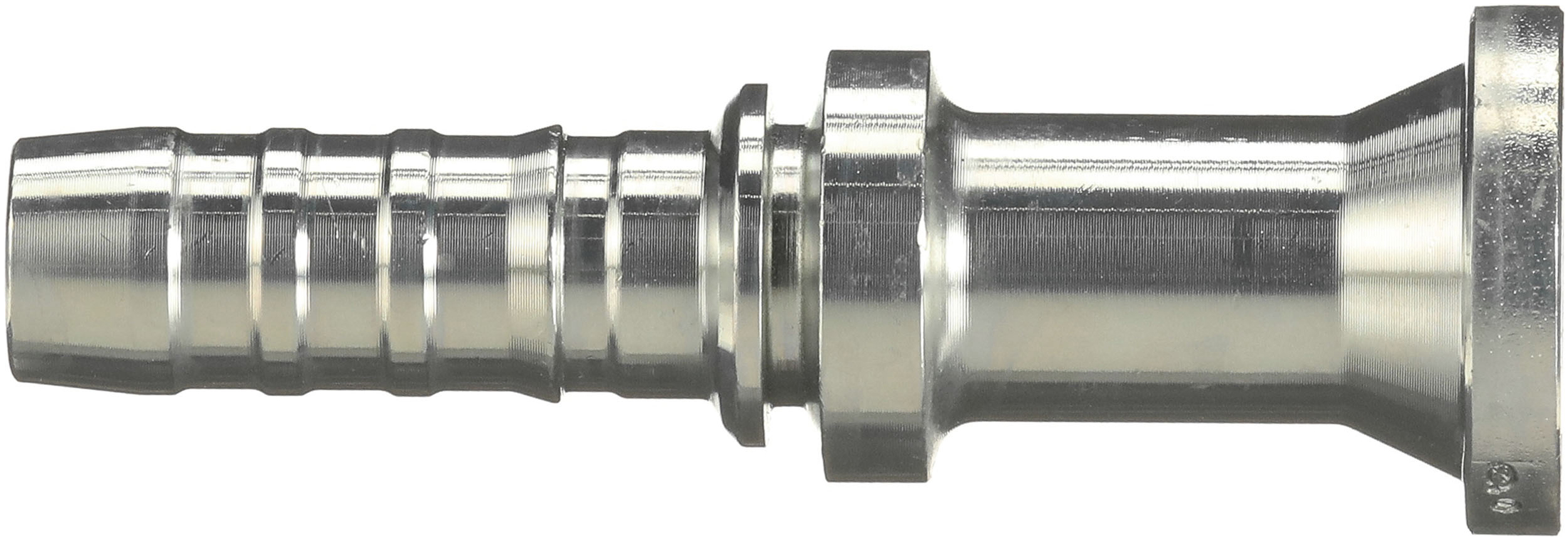

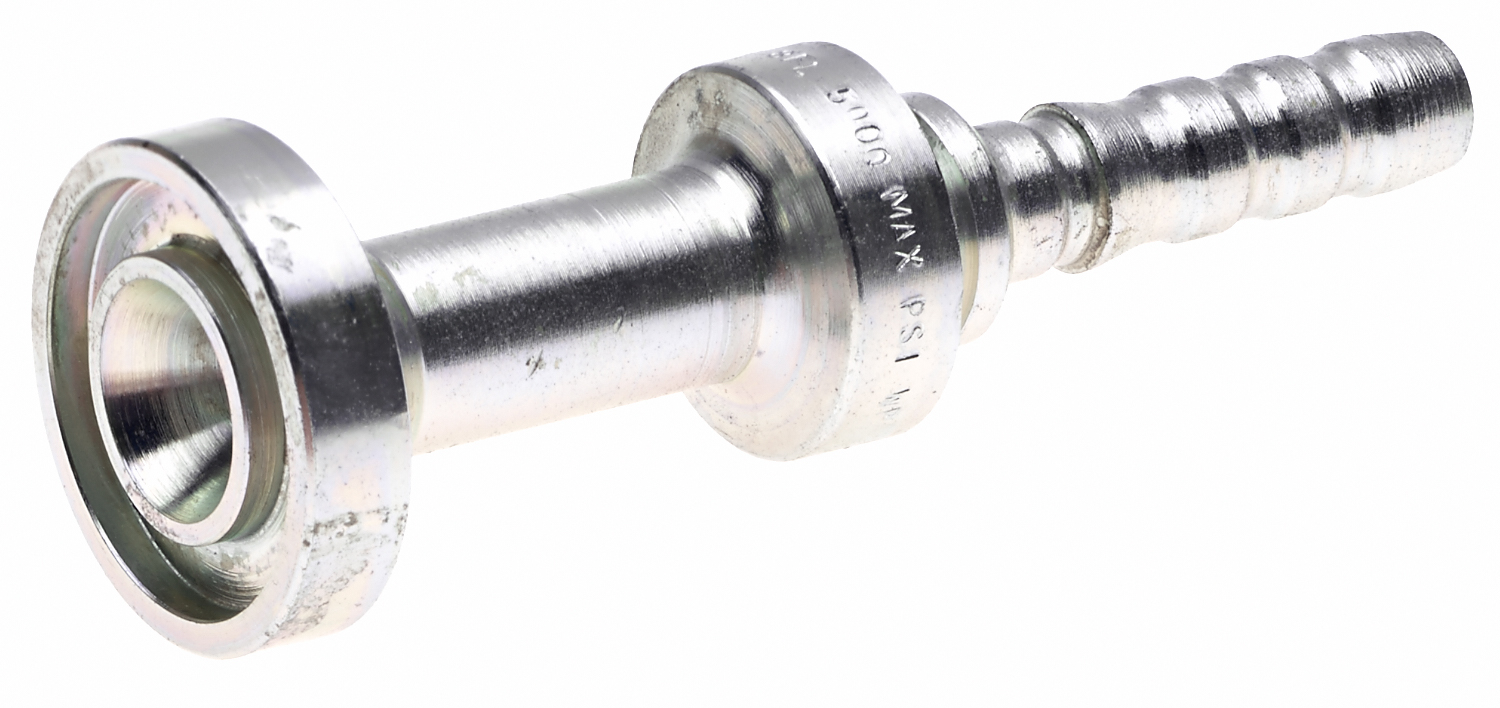

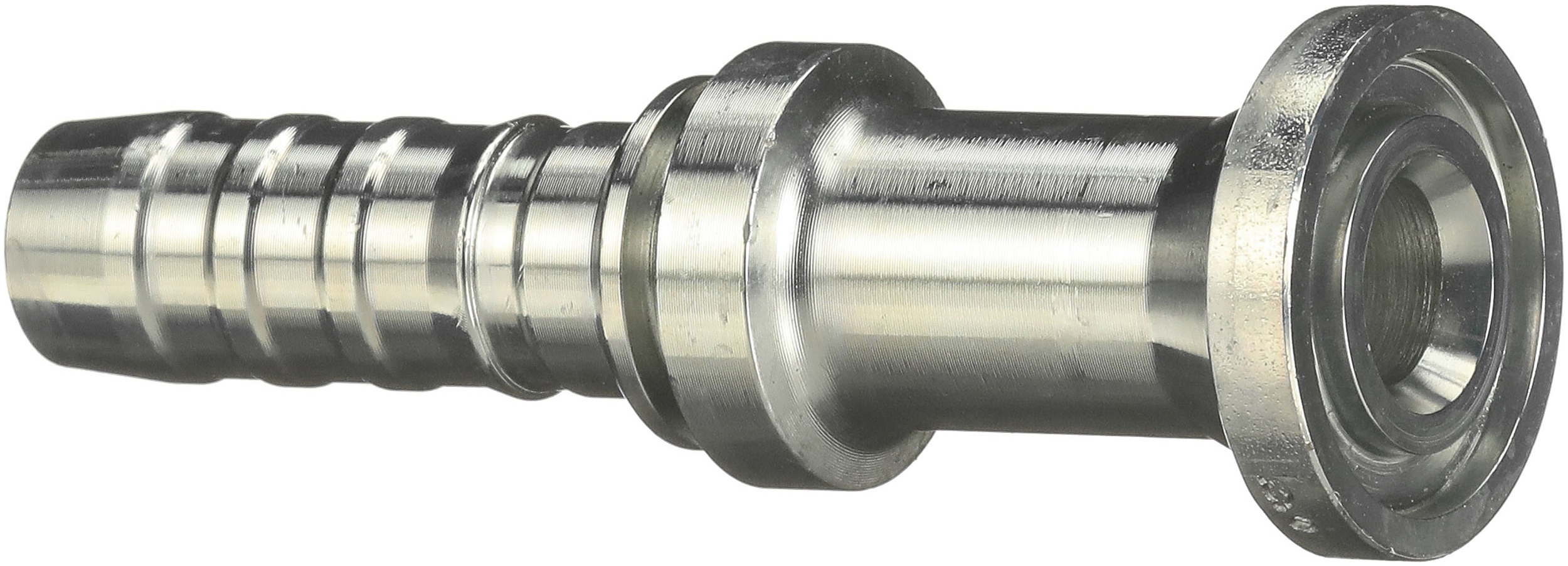

Code 61 O-Ring Flange (GlobalSpiral)
Write a review
Part # G20300-0608 | Line Code: GAT
brandNameImage
brandNameImage
$42.99
$42.99
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Coupling Description GlobalSpiral Code 61 O-Ring Flange

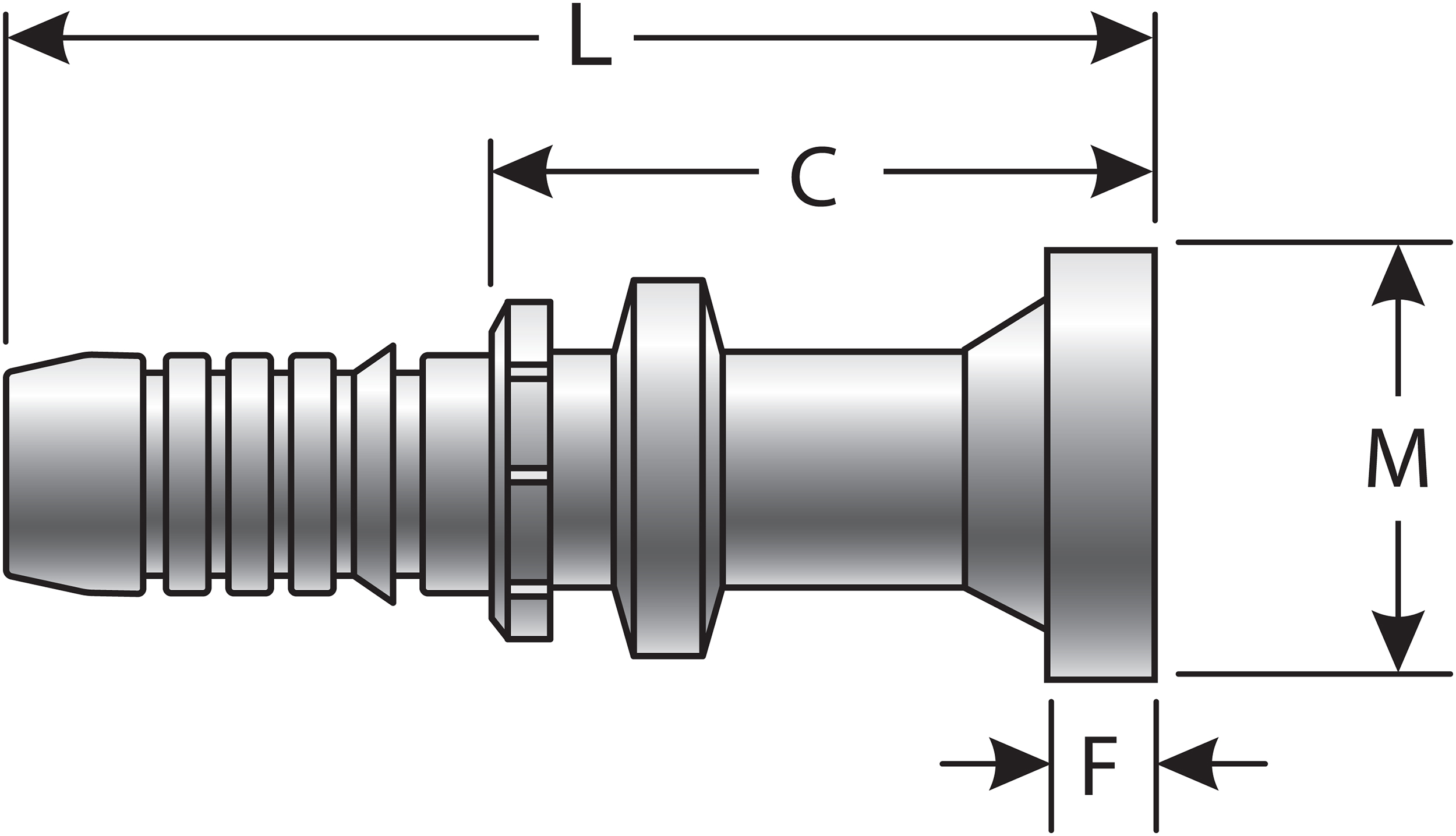

Cut Off (in) - C 2.13
Hose Inside Diameter (mm) 9.5
Maximum Working Pressure 5000
Heavy Duty Supplier Yes
Hose Inside Diameter (in) .375
Flange Thickness .27
Hose Recommendation All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Flange Head Thickness (in) - F .27
Length 3.54
Flange Diameter (mm) - M 30.2
Inside Diameter 9.5
Flange Diameter 1.19
Flange Head Thickness (mm) - F 6.9
Length (in) 3.54
Maximum Working Pressure (psi) 5000
Length (MM) 89.9
Flange Diameter (in) - M 1.19
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Cut Off (mm) - C 54.2
Industrial Description 6GS-8FL
Part Terminology Hydraulic Coupling / Adapter
Features & Benefits
expand_more
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. -8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
