| Burst Pressure | 16000 |
| Dash Size | 8 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .5 |
| Coupling Recommendation | Field Attachable Type T, GlobalSpiral, MegaCrimp, Stainless Steel B |
| Inside Diameter | .5 |
| Minimum Burst Pressure (psi) | 16000 |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Reinforcement | Two Braids, High-Tensile Steel Wire |
| Maximum Working Pressure (psi) | 4000 |
| Hose Material | Nitrile - Type C |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Industrial Description | 8G2XREEL |
| Cover Color | Black |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Minimum Bend Radius (in) | 7 |
| Inside Diameter (in) | .5 |
| Maximum Working Pressure | 4000 |
| Color | Black |
| Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Type | Hydraulic Hose |
| Tube Material | Nitrile - Type C |
| Hose Outside Diameter (in) | .86 |
| Length | 330 |

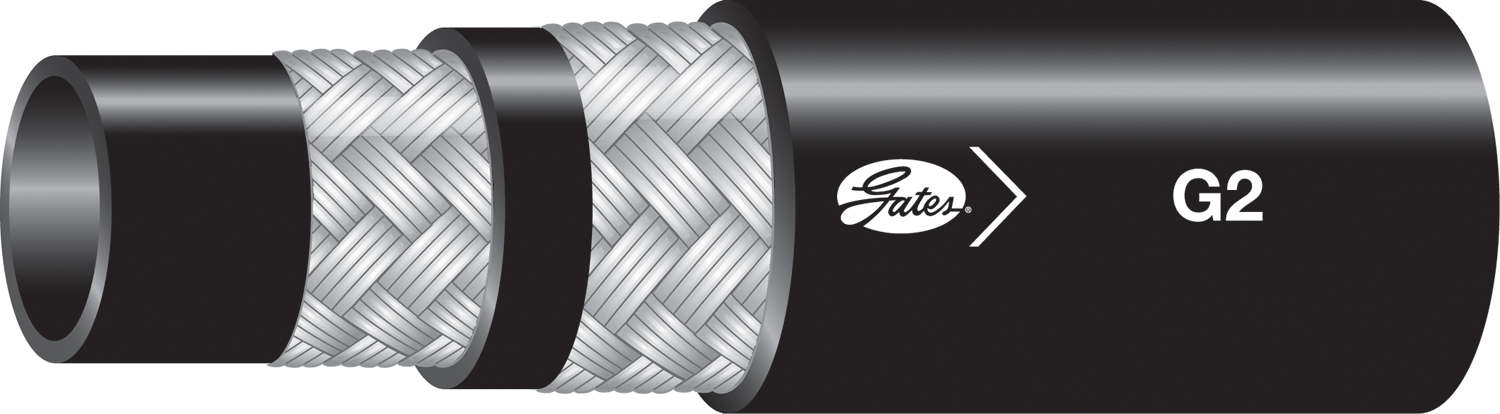

| Product Type | Global G2 2-Wire Braid Hose - SAE 100R2 Type AT |
| Outside Diameter (In) | .86 |
| Temperature Range | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Hose Pressure Description | High Pressure |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Outside Diameter | .86 |
| Part Terminology | Hydraulic Hose |
Recommended for high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO1436 2SN R2 and EN 853 2SN.
Meets Flame Resistance Acceptance Designation MSHA 2G.
Temperature Range: -40 Deg F to +212 Deg F (-40 Deg C to +100 Deg C).
