| Grade Type | Electro-Viscous |
| Thermal Or Centrifugal | D - Severe Duty & Truck Fan Drive |

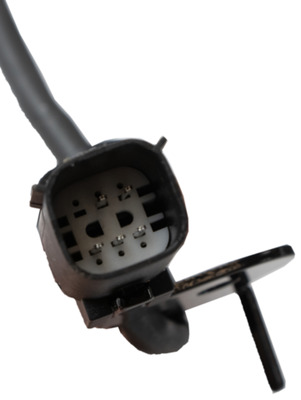

| Terminal Type | Male |
| Clutch Maximum Diameter | 7.73 |
| Distance From Clutch To Mounting Flange | 3.16 |
| Rotation | REV |
| Mounting Type | HEX |
| Mounting Hole Quantity | 4 |
| Color | Raw Aluminum in Color |
| Use Type | Electro-Viscous |
| Bolt Hole Quantity | 4 |
| Material | Aluminum |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Heavy Duty Supplier | Yes |
| O.E. Replacement? | Yes |
| New or Reman | New |
| Meets / Exceeds OEM? | Yes |
| SDS Required | No (135233618) |
| Mount Hole Qty | 4 |
| Performance Rated? | Yes |
| Mounting Hardware? | Not Included |
| Style | Severe Duty |
| Drawing Type | D |
| Bolt Quantity | 4 |
| Mount Type | HEX |
| Description | Fan Clutches |
| Type | Electronic |
| Duty Rating | Electro-Viscous |
| Overall Dia. MM | 196.3 |
| Fan Bolt Circle IN | 7.01 |
| Bolt Thread | M6 x 1.0 STUD |
| Overall Height MM | 104.4 |
| Dia. IN | 7.73 |
| Mounting Hardware Included | No |
| Fan Mount Dia. IN | 6.45 |
| Overall Dia. IN | 7.73 |
| Overall Height IN | 4.11 |
| Mount Dia. IN | 1.44 |
| Pilot Depth IN | 0.82 |

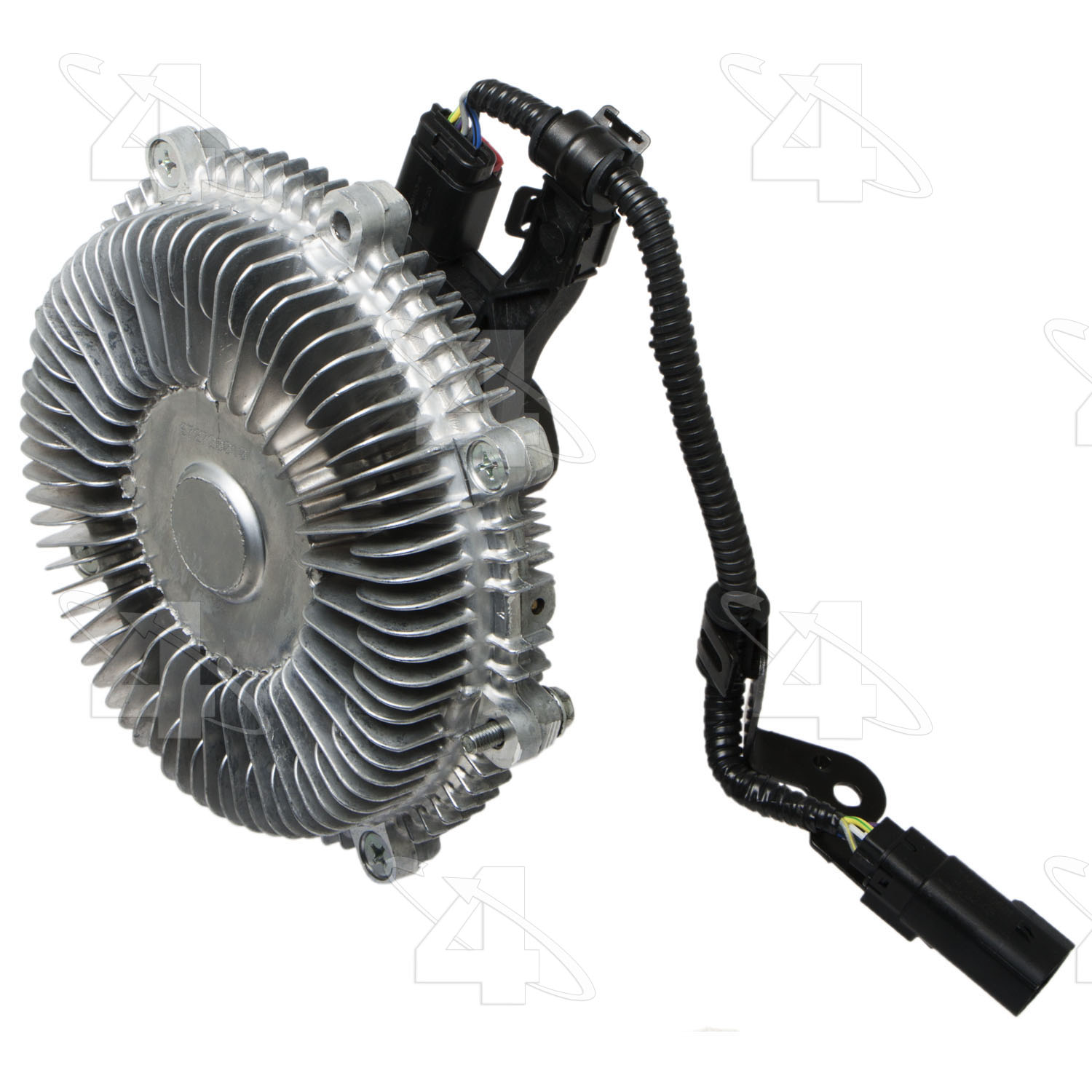

| Part Terminology | Engine Cooling Fan Clutch |
