| Grade Type | Severe |
| Thermal Or Centrifugal | D - Severe Duty & Truck Fan Drive |
| Terminal Type | N/A |
| Clutch Maximum Diameter | 6.45 |
| Distance From Clutch To Mounting Flange | 1.1 |
| Rotation | STD |
| Mounting Type | HEX |
| Mounting Hole Quantity | 4 |
| Color | Raw Aluminum in Color |
| Use Type | Severe |
| Bolt Hole Quantity | 4 |
| Material | Aluminum |
| Overall Dia. IN | 6.45 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Heavy Duty Supplier | Yes |
| O.E. Replacement? | Yes |
| New or Reman | New |
| Meets / Exceeds OEM? | Yes |
| SDS Required | No (135233618) |
| Mount Hole Qty | 4 |
| Performance Rated? | Yes |
| Mounting Hardware? | Not Included |
| Type | Thermal |
| Overall Dia. MM | 163.8 |
| Duty Rating | Severe |
| Style | Severe Duty |
| Drawing Type | D |
| Bolt Quantity | 4 |
| Mount Type | HEX |
| Description | Fan Clutches |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle MM | 96.8 |
| Pilot Depth MM | 12.7 |
| Bolt Thread | 3/8-16 Hole |
| Fan Mount Dia. MM | 82.4 |
| Fan Mount Dia. IN | 3.25 |
| Fan Mount Height MM | 27.9 |
| Pilot Depth IN | 0.5 |
| Overall Height MM | 81.3 |
| Dia. IN | 6.45 |
| Pilot Dia. MM | 30 |
| Pilot Dia. IN | 1.18 |
| Mount Dia. MM | 48 |
| Mount Dia. IN | 1.88 |
| Mounting Hardware Included | No |
| Overall Height IN | 3.2 |
| Fan Bolt Circle IN | 3.81 |

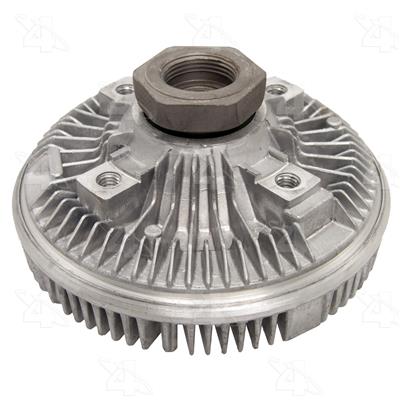

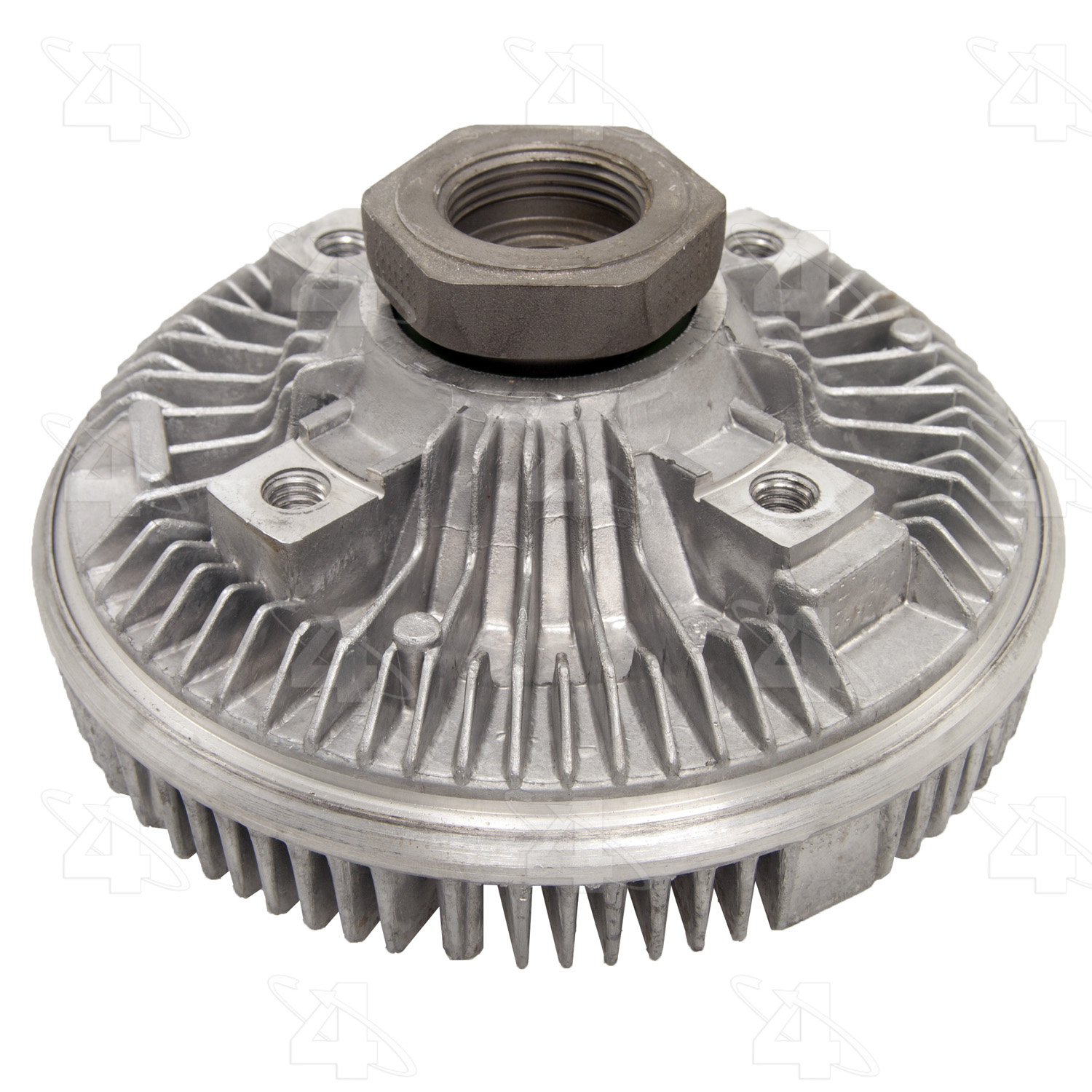

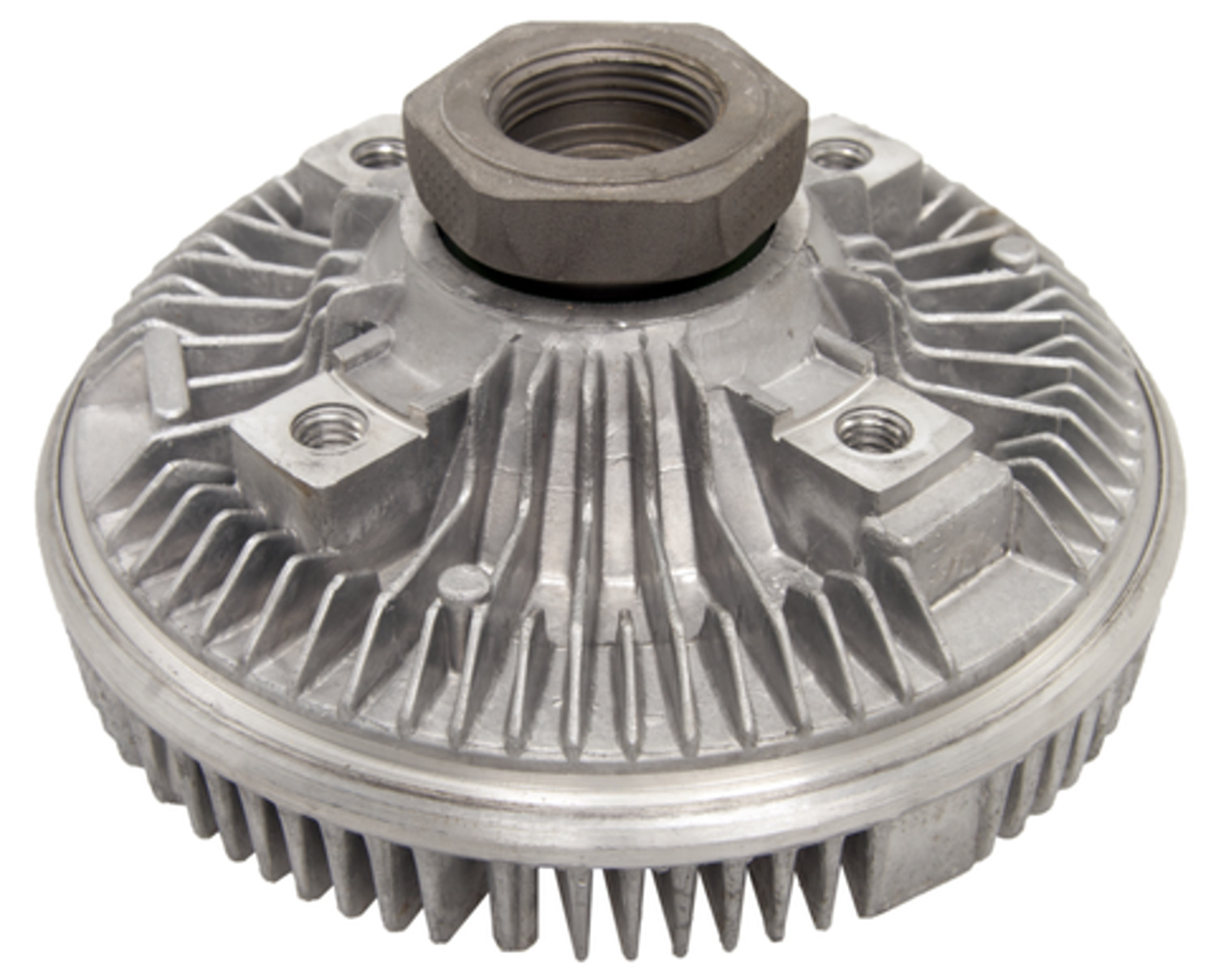

| Part Terminology | Engine Cooling Fan Clutch |
