| Grade Type | Electro-Viscous |
| Thermal Or Centrifugal | D - Severe Duty & Truck Fan Drive |
| Mounting Hole Quantity | 6 |
| Distance From Clutch To Mounting Flange | 1.22 |
| Clutch Maximum Diameter | 7.73 |
| Wire Gauge Measurement | Uses Original Equipment Connector |
| Rotation | STD |
| Mounting Type | HEX |
| Color | Raw Aluminum in Color |
| Use Type | Electro-Viscous |
| Bolt Hole Quantity | 6 |
| Material | Aluminum |
| Fan Mount Dia. IN | 5 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Mount Dia. IN | 1.86 |
| Heavy Duty Supplier | Yes |
| O.E. Replacement? | Yes |
| New or Reman | New |
| Meets / Exceeds OEM? | Yes |
| SDS Required | No (135233618) |
| Performance Rated? | Yes |
| Bolt Quantity | 6 |
| Mounting Hardware? | Not Included |
| Pilot Depth MM | 17.8 |
| Wire Quantity | Uses Original Equipment Connector |
| Style | Severe Duty |
| Drawing Type | D |
| Mount Type | HEX |
| Wire Guage | Uses Original Equipment Connector |
| Description | Fan Clutches |
| Bolt Thread | M6 x 1.0 Hole |
| Mount Hole Qty | 6 |
| Fan Bolt Circle MM | 152.4 |
| Fan Mount Height MM | 31 |
| Type | Electronic |
| Duty Rating | Electro-Viscous |
| Fan Mount Dia. MM | 127 |
| Overall Dia. MM | 196.3 |
| Overall Height MM | 122.2 |
| Electronic Clutch? | Electronic |
| Dia. IN | 7.73 |
| Mount Dia. MM | 47 |
| Pilot Dia. MM | 40 |
| Pilot Dia. IN | 1.57 |
| Mounting Hardware Included | No |
| Pilot Depth IN | 0.7 |
| Fan Bolt Circle IN | 6 |
| Fan Mount Height IN | 1.22 |
| Overall Dia. IN | 7.73 |
| Overall Height IN | 4.81 |

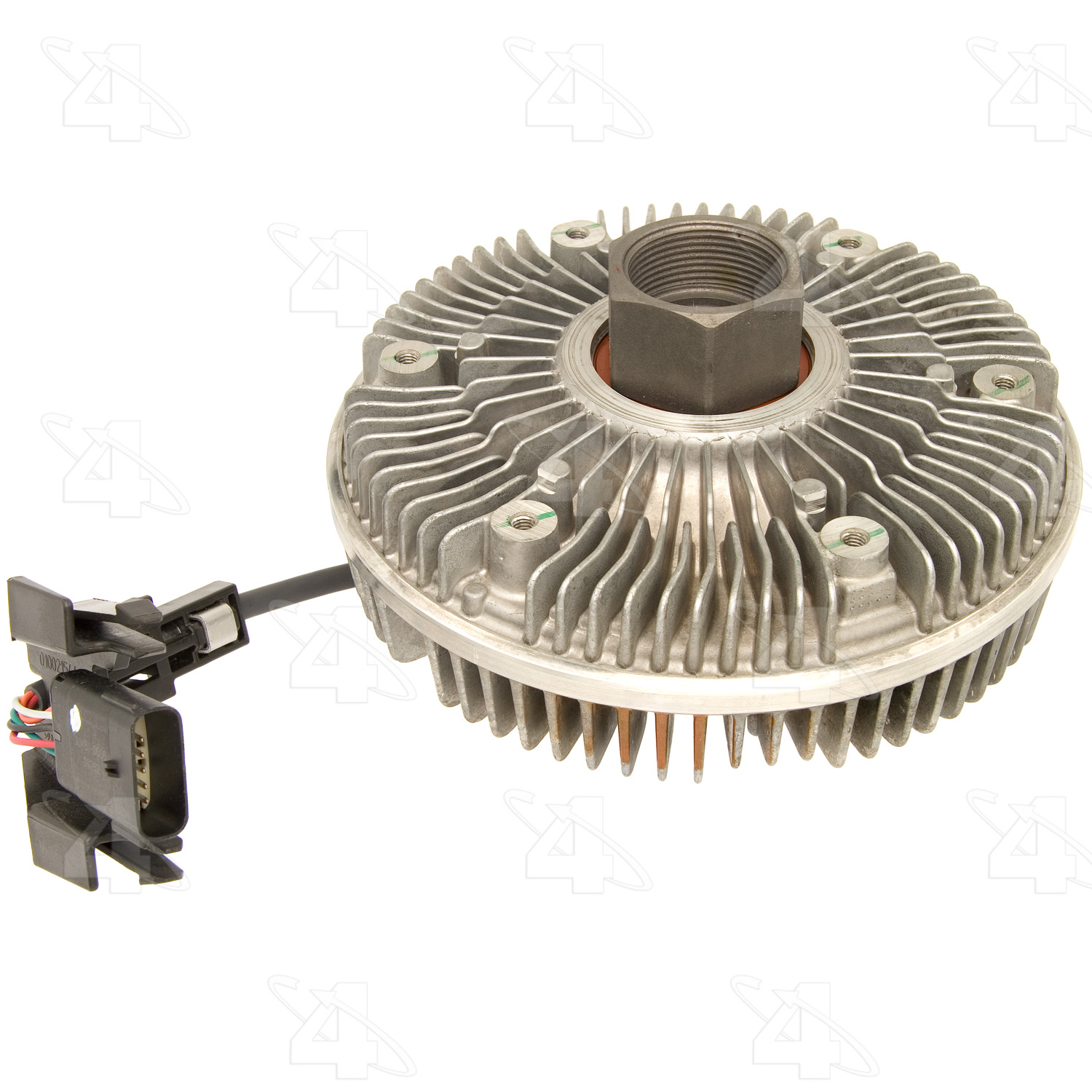

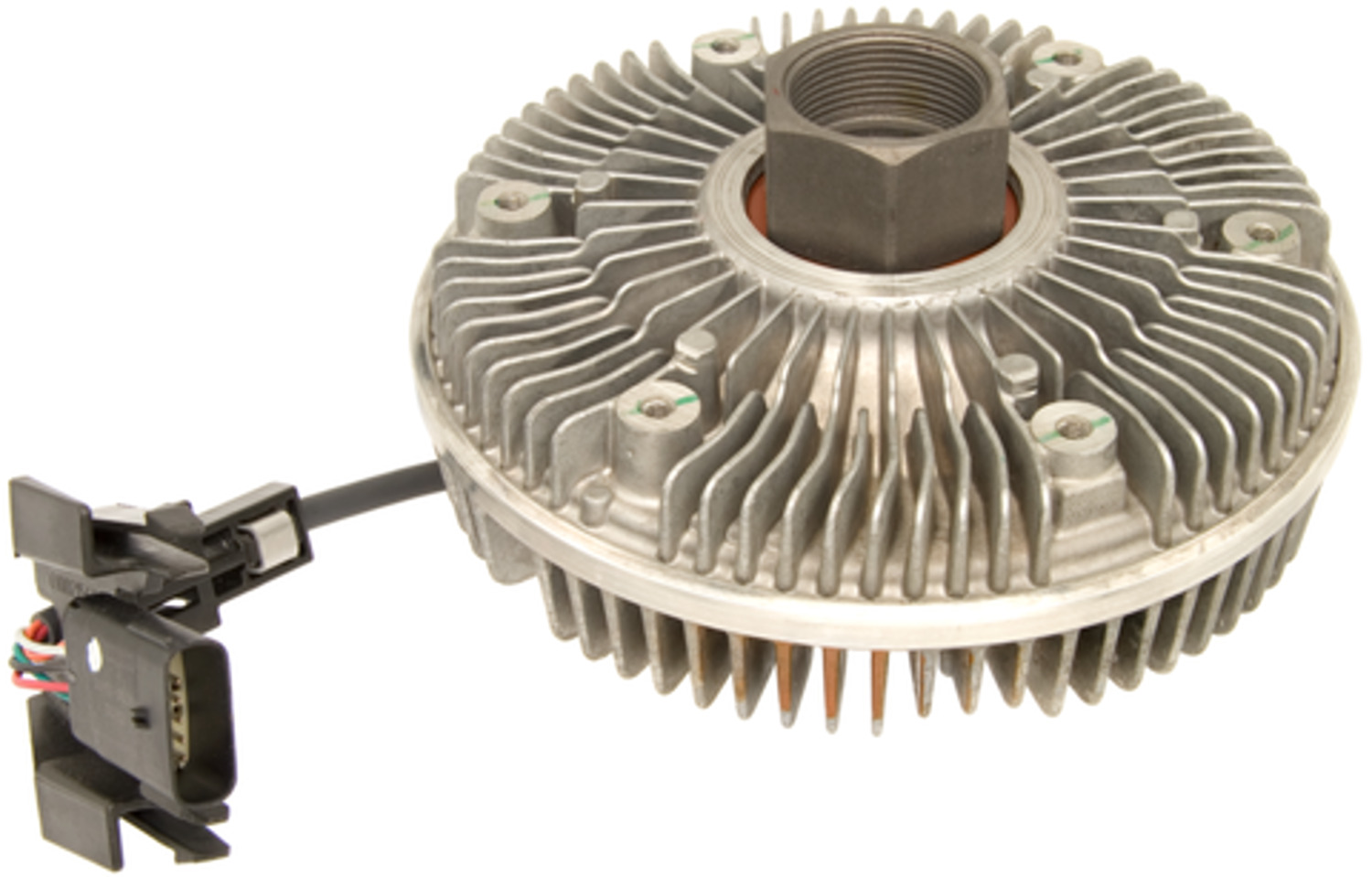

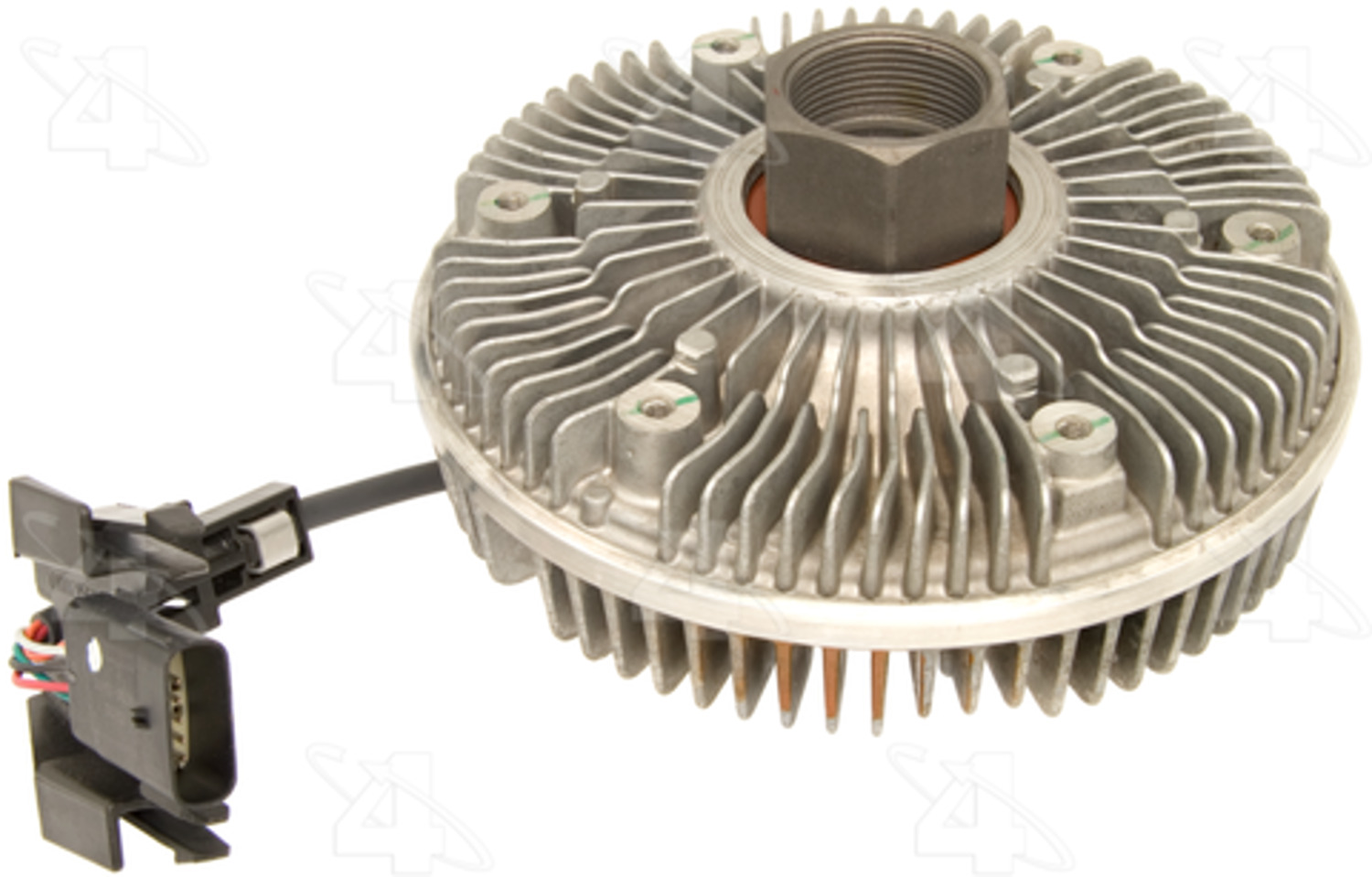

| Part Terminology | Engine Cooling Fan Clutch |
