| Thermal Or Centrifugal | A - 5" & 6" Import |
| Terminal Type | N/A |
| Clutch Maximum Diameter | 6.65 |
| Distance From Clutch To Mounting Flange | 2.7 |
| Mounting Type | Flange |
| Use Type | Standard |
| Rotation | STD |
| Mounting Hole Quantity | 4 |
| Color | Raw Aluminum in Color |
| Bolt Hole Quantity | 4 |
| Grade Type | Standard |
| Material | Aluminum |
| California Proposition 65 | WARNING: This product contains a chemical known to the State of California to cause cancer. |
| Overall Dia. IN | 6.65 |
| Clutch Type | A - 5" & 6" Import |
| Mount Type | Flange |
| Heavy Duty Supplier | Yes |
| O.E. Replacement? | Yes |
| New or Reman | New |
| Meets / Exceeds OEM? | Yes |
| SDS Required | No (135233618) |
| Mount Hole Qty | 4 |
| Performance Rated? | Yes |
| Mounting Hardware? | Not Included |
| Type | Thermal |
| Bolt Quantity | 4 |
| Description | Fan Clutches |
| Bolt Thread | M6 x 1.0 Hole |
| Electronic Clutch? | Non Electronic |
| Duty Rating | Standard |
| Style | Standard Duty |
| Drawing Type | A |
| Overall Dia. MM | 168.9 |
| Mount Dia. IN | 3.07 |
| Pilot Depth MM | 20.6 |
| Overall Height MM | 86.1 |
| Fan Mount Dia. MM | 104 |
| Mount Dia. MM | 78 |
| Fan Bolt Circle MM | 135.9 |
| Fan Mount Height MM | 68.7 |
| Fan Mount Dia. IN | 4.09 |
| Fan Bolt Circle IN | 5.35 |
| Dia. IN | 6.65 |
| Pilot Dia. IN | .63 |
| Mounting Hardware Included | No |
| Pilot Depth IN | 0.81 |
| Overall Height IN | 3.39 |

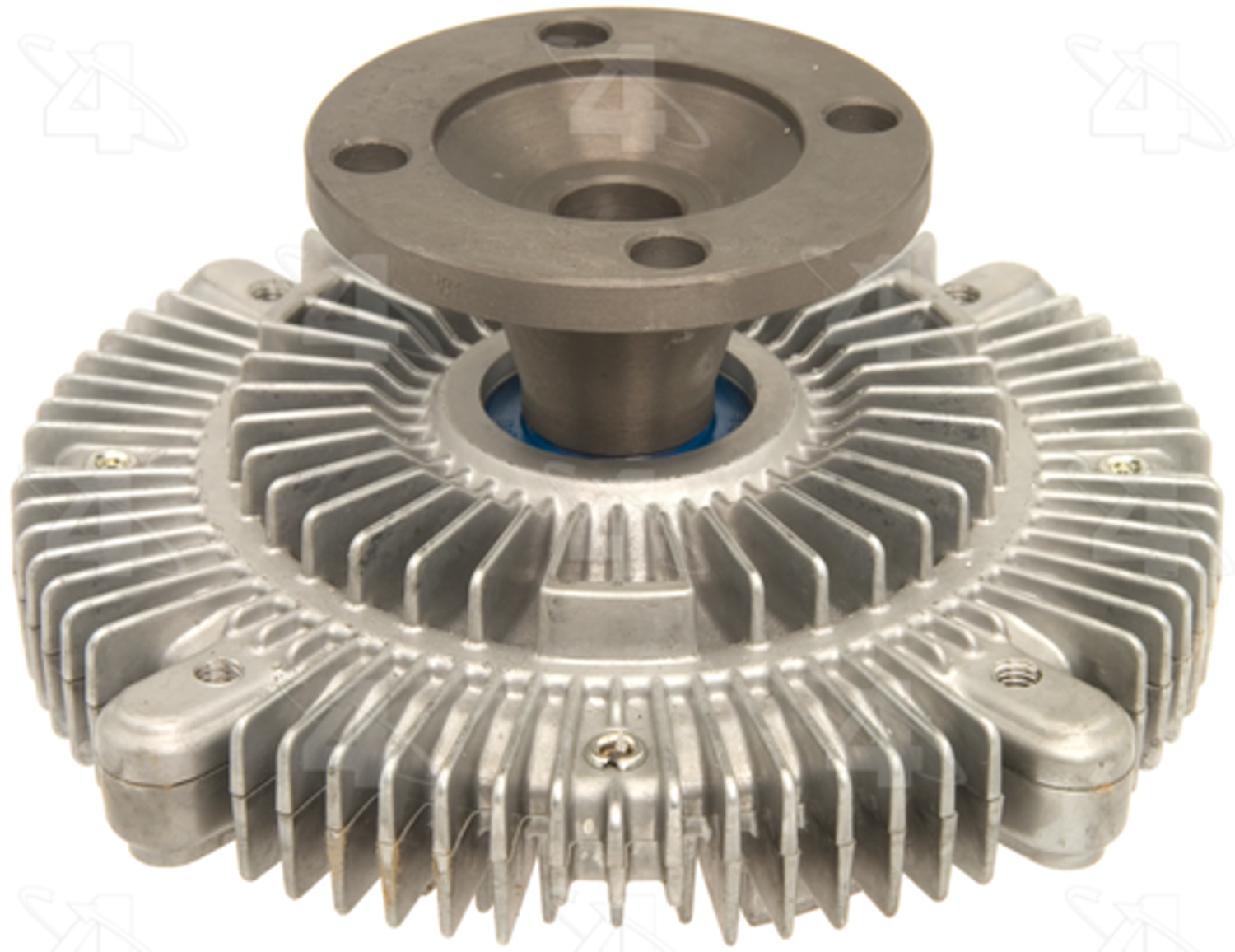

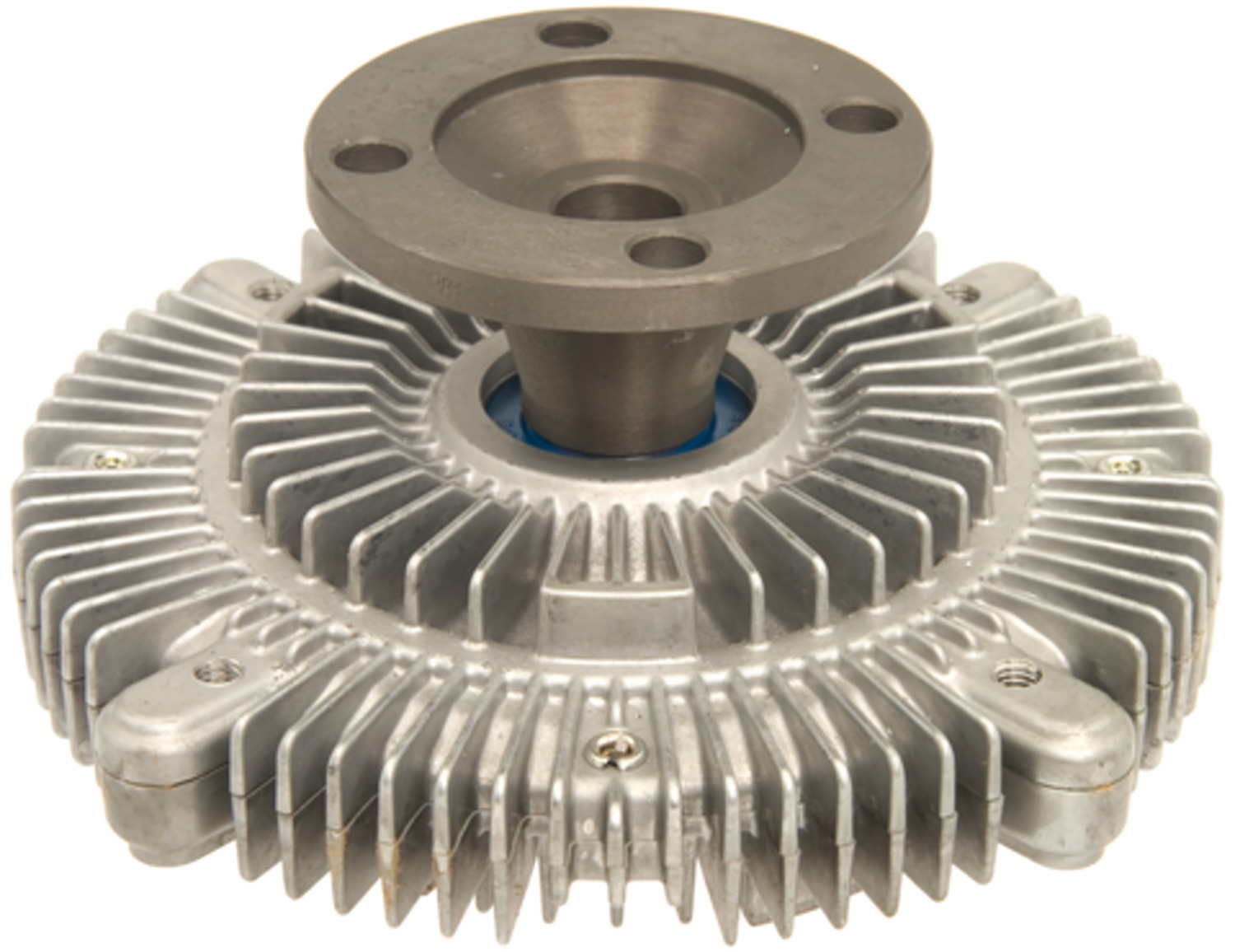

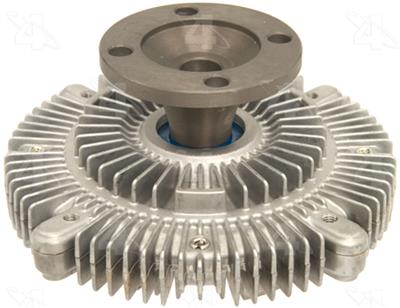

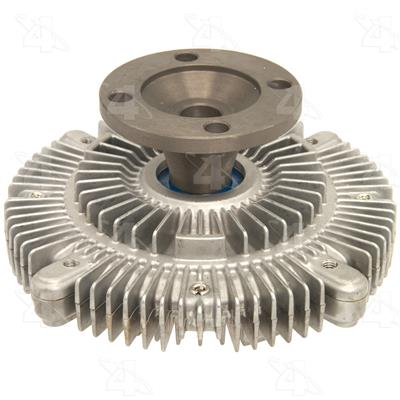

| Part Terminology | Engine Cooling Fan Clutch |
