| Color | Raw Aluminum in Color |
| Material | Aluminum |
| Heavy Duty Supplier | Yes |
| Original Equipment Replacement? | Yes |
| O.E. Replacement? | Yes |
| Meets or Exceeds OEM Specs? | Yes |
| New or Reman | New |
| Meets / Exceeds OEM? | Yes |
| Mount Hole Qty | 4 |
| Performance Rated? | Yes |
| Mounting Hardware? | Not Included |
| Rotation | REV |
| Mount Dia. IN | 1.44 [36mm] HEX |
| Type | Thermal |
| Flange Cir. | 1.44 [36mm] HEX |
| Fan Mount Height IN | 1.75 |
| Pilot Depth MM | 17.8 |
| Pilot Diameter | M30 X 1.5 Right |
| Pilot Depth | 0.70 |
| Overall Dia. MM | 163.8 |
| Overall Diameter | 6.45 |
| Pilot Depth IN | 0.703125 |
| Duty Rating | Severe |
| Wire Quantity | Uses Original Equipment Connector |
| Fan Bolt Circle | 3.25 |
| Overall Height MM | 95.6 |
| Style | Severe Duty |
| Mount Dia. MM | 36 HEX |
| Drawing Type | D |
| Bolt Quantity | 4 |
| Fan Mount Height | 1.75 |
| Overall Dia. IN | 6.450 |
| Fan Bolt Circle MM | 82.6 |
| Fan Mount Height MM | 44.3 |
| Fan Bolt Circle IN | 3.250 |
| Mount Type | HEX |
| Overall Height IN | 3.765625 |
| Wire Guage | Uses Original Equipment Connector |
| Overall Height (H) | 3.77 |
| Description | Fan Clutches |
| Fan Mount Dia. | 2.52 |
| Fan Mount Dia. MM | 63.9 |
| Fan Mount Dia. IN | 2.52 |
| Pilot Dia. IN | M30x1.500 |
| Electronic Clutch? | Non Electronic |
| Bolt Thread | M10 x 1.5 Hole |
| Bolt Nut Type | M10x1.5 HOLE (4) |
| Clutch Type | D - Severe Duty and Truck Fan Drive |

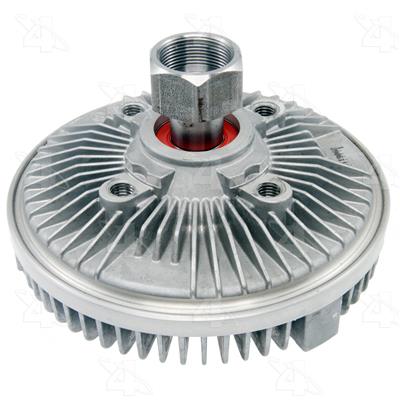

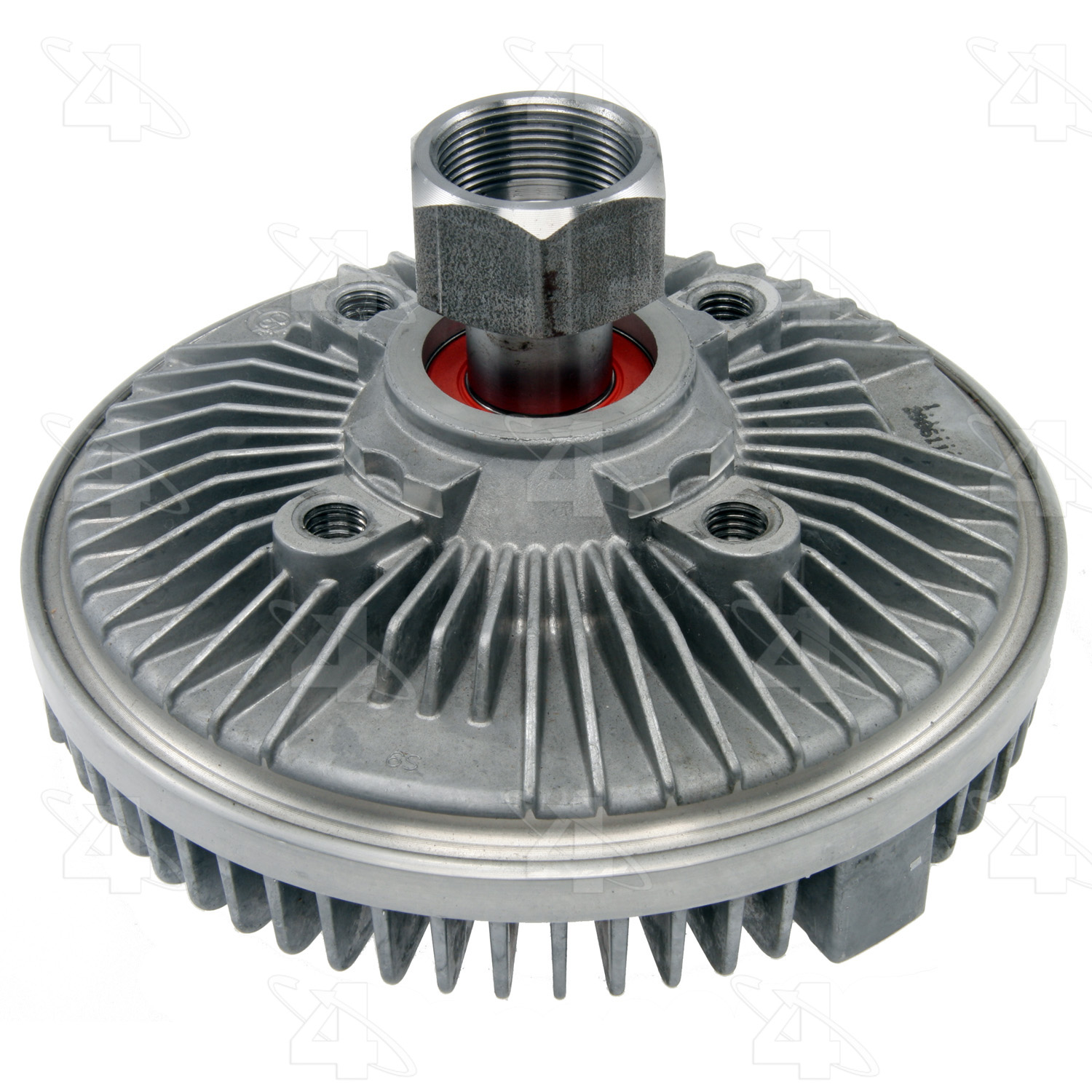

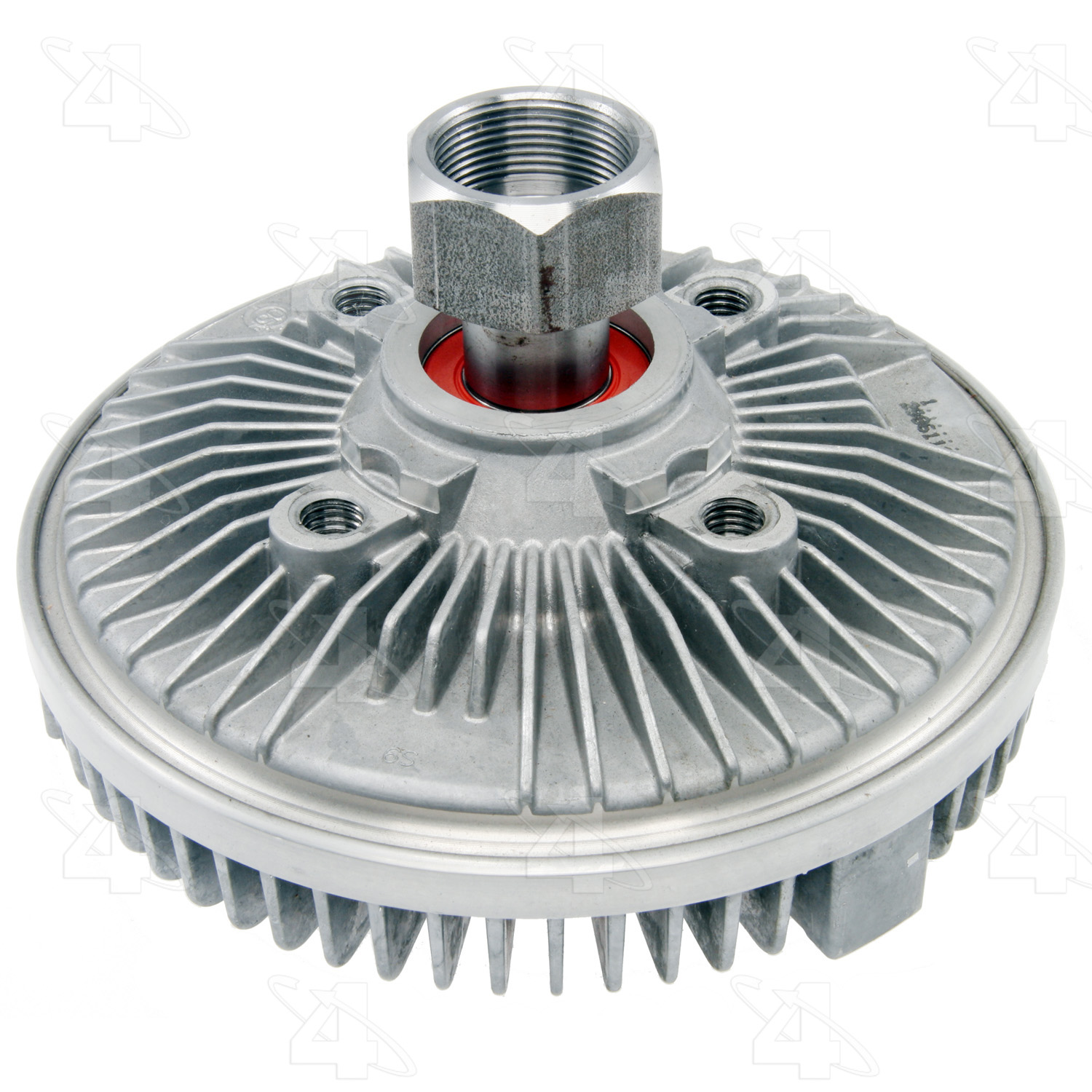

| Part Terminology | Engine Cooling Fan Clutch |
