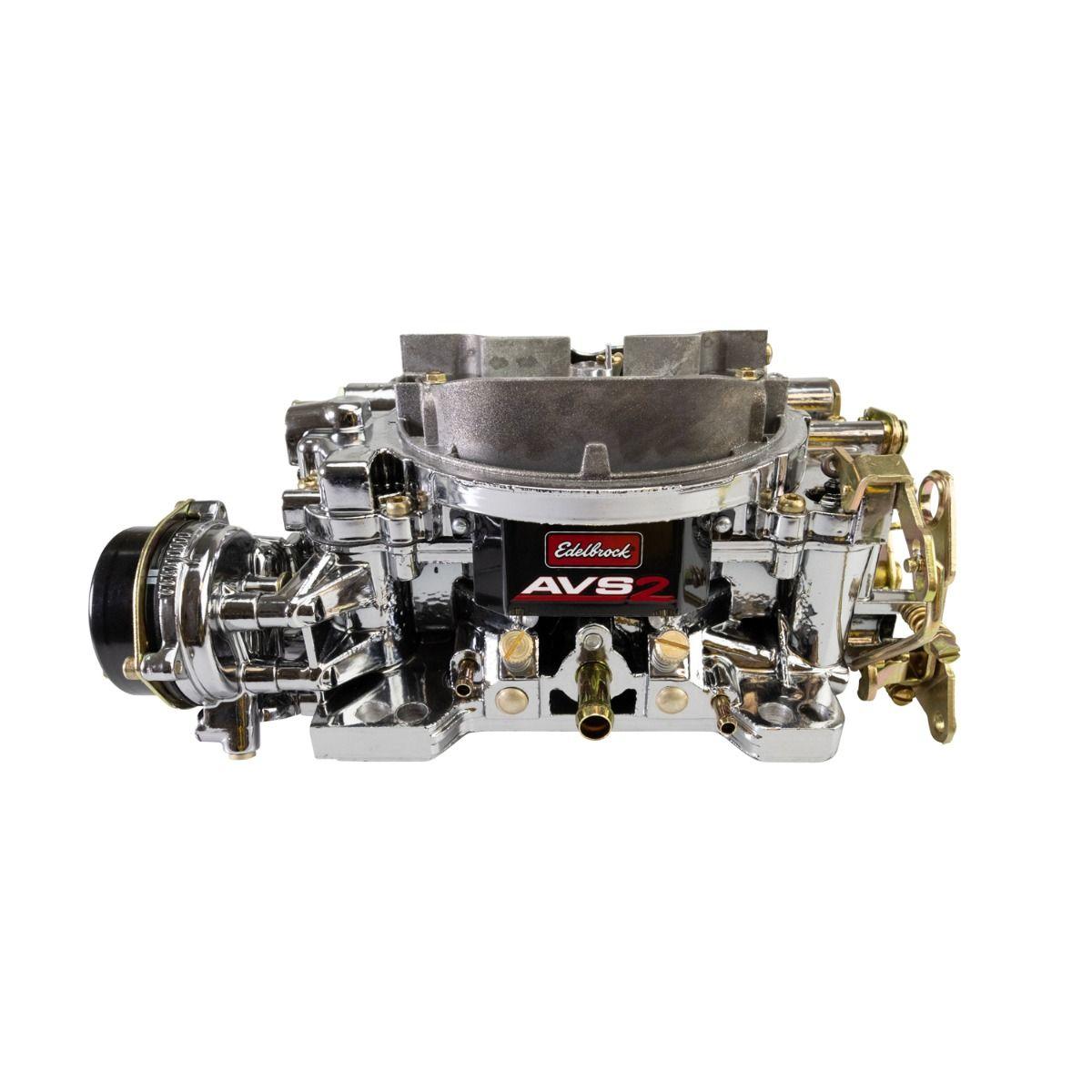

AVS2 Carburetor #1906-CP 650 CFM w/ Electric Choke, Chrome Plasma Finish
Part # 1906CP | Line Code: EDE
Edelbrock
Edelbrock

$598.99
$598.99
error
Not Fitted

Product Details
expand_less
Secondary Jet Diameter 0.098
Flange Shape Square
Mounting Hole Quantity 4
Base Width 5.16
Adjustable Float Level Yes
Metering Rod Size .070 x .037
Inlet Fitting Thread Diameter 5/8" -20
Base Length 5.62
Bore Diameter Primary Bore 1.44; Secondary Bore 1.75
Maximum Flow Rating 650
Float Level 45123
Fuel Compatibility Gas
Air Cleaner Flange Diameter 5.09
Small Venturi Diameter 1.63
Required Products 1 9266
Barrel Quantity 4
Required Products 2 8126
Booster Type Annular
Main Venturi Diameter 1.19
Primary Jet Diameter 0.101
Required Products 3 1221
Finish Chrome Plasma
Marine Approved No
Condition New
Spring Force 5" Hg (Orange)
Universal Or Specific Fit Universal
Gasket Or Seal Included Yes
Related Products 5 8711
Mounting Hardware Included No
Related Products 6 9265
Related Products 3 19063
Material Aluminum
Related Products 4 8133
Related Products 1 1906
Accel Pump Capacity Adjustable - 25cc/31cc/39cc
Related Products 2 1906-BP
EGR Port No
Choke Type Electric
Series AVS2
Throttle Linkage Type Universal
Float Material Brass
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Body Height 3.25
Part Terminology Carburetor

Features & Benefits
expand_more
Edelbrock's AVS2 #1906-CP with Electric Choke is a special Chrome Plasma finished 650 CFM street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas. The AVS2 1906-CP features an annular ring with eight evenly spaced orifices that replaces the standard single brass tube (down-leg) fuel feed. The AVS2 booster ring distributes fuel into the airflow stream with an even spray that eliminates flat spots and greatly improves throttle response in the low-to mid-RPM range without sacrificing top-end power. The Chrome Plasma finish is applied is a 7 stage process to ensure the most durable and brilliant finish possible. The AVS2 is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 carbs have the unique ability to hold a tune when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. AVS2 Carburetors feature a two-piece design for easy tuning that allows you to make float level adjustments or replace internal components without draining the carburetor or removing it from the engine. The 1906-CP AVS2 650 CFM comes with an electric choke and is manufactured by Edelbrock in the USA.
