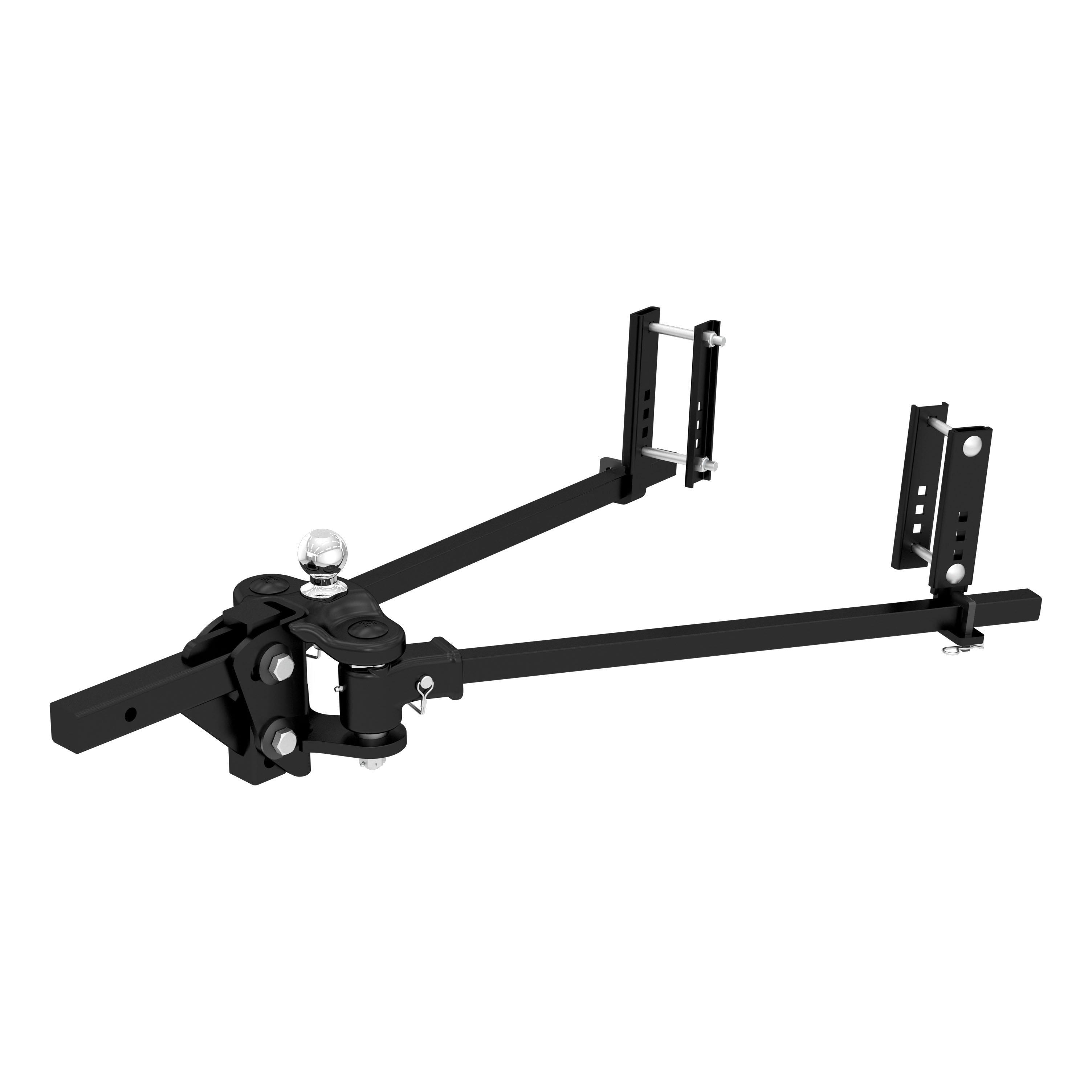

TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K
Part # 17501 | Line Code: CUR
brandNameImage
brandNameImage

$627.99
$627.99
error
Not Fitted

Product Details
expand_less
Tongue Weight (TW) 1,000 LB - 1,500 LB
Container Type - XA 40GP
Prop 65 Label Text - XA Blanks
Container Load Type - XA PALLETS
Sales Group Description - XA TRUTRACK WD SYSTEM
Heavy Duty Supplier Yes
Container Volume Cubic Feet - XA 0.00000
Box Width in Inches - XA 0
Gross Trailer Weight(GTW) 10,000 LB - 15,000 LB
Prop 65 Material - XA Unknown
Master Case Volume Cubic Feet - XA 0.00000
Pallet Case Per - XA 15
Pallet Total Weight Per - XA 1859.000
Item Width - XA 0.000
Truckload Weight - XA 0
Prop 65 Warning Y/N - XA NO
Tongue Weight(TW) 1,000 LB - 1,500 LB
Container Cases Qty - XA 300
Box Height in Inches - XA 0
Pallet Qty - XA 0.000
Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Truckload Pallets Qty - XA 0
Item Length - XA 0.000
Sales Family Code - XA WDIST
Truckload Cases Qty - XA 0
Finish - XA CARBIDE BLACK POWDER COAT
Drop 0 IN
Container Volume Cubic Meter - XA 0.00000
Prop 65 Warning Label Type - XA Unknown
Side Application Type Description - XA Blank
Pallet Cases Per Layer - XA 3
Parcel Allowed - XA Yes
Container Unit Qty - XA 300
Prop 65 Reason - XA Unknown
Master Case Qty - XA 1
Retail Width - XA 12.750
Item Height - XA 0.000
Sales Family Description - XA WEIGHT DISTRIBUTION
Container Weight KG - XA 0
Retail Height - XA 11.500
Rise 5.75 IN
Master Case ITF14 - XA 0
Pallet Cases Per - XA 15
Product Weight - XA 0.000
Master Case ITF14 0
Truckload Units Qty - XA 0
Master Case Width Inches - XA 37.400
Container Pallet Qty - XA 20
Master Case Weight Lbs - XA 121.000
Finish CARBIDE BLACK POWDER COAT
Truckload Volume Cubic Feet - XA 0.00000
Master Case Height Inches - XA 11.600
Container Weight Lbs - XA 37180
Retail Length - XA 38.000
Title TruTrack Trunnion Bar Weight Distribution System (10K - 15K lbs., 35-9/16" Bars)
Box Length in Inches - XA 0
Mount Type Description - XA Blank
Pallet Layer of Cases - XA 5
Rate Class - XA 70.0
Pallet Total Height Inches - XA 63.400
Tariff 301 - XA No
Pallet Case Per Layer - XA 3
Gross Trailer Weight (GTW) 10,000 LB - 15,000 LB
Material - XA Carbon Steel
Item Class - XA OBS
Master Case Inner Pack Qty - XA 0
Master Case Length Inches - XA 13.800
Class ID 0
Shipping Weight - XA 120.000
Part Terminology Trailer Weight Distribution Kit

Features & Benefits
expand_more

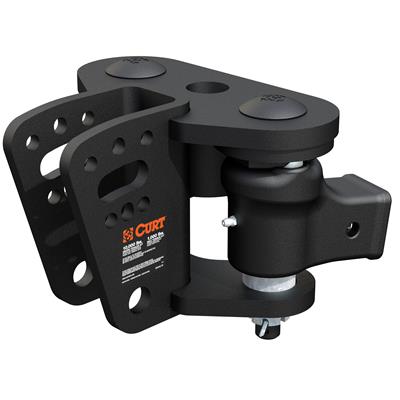

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. The TruTrack 4P features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty.
