Name: Brake Drum
Brand: Centric Parts
Price: 71.99 USD

keyboard_arrow_left

Go back

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

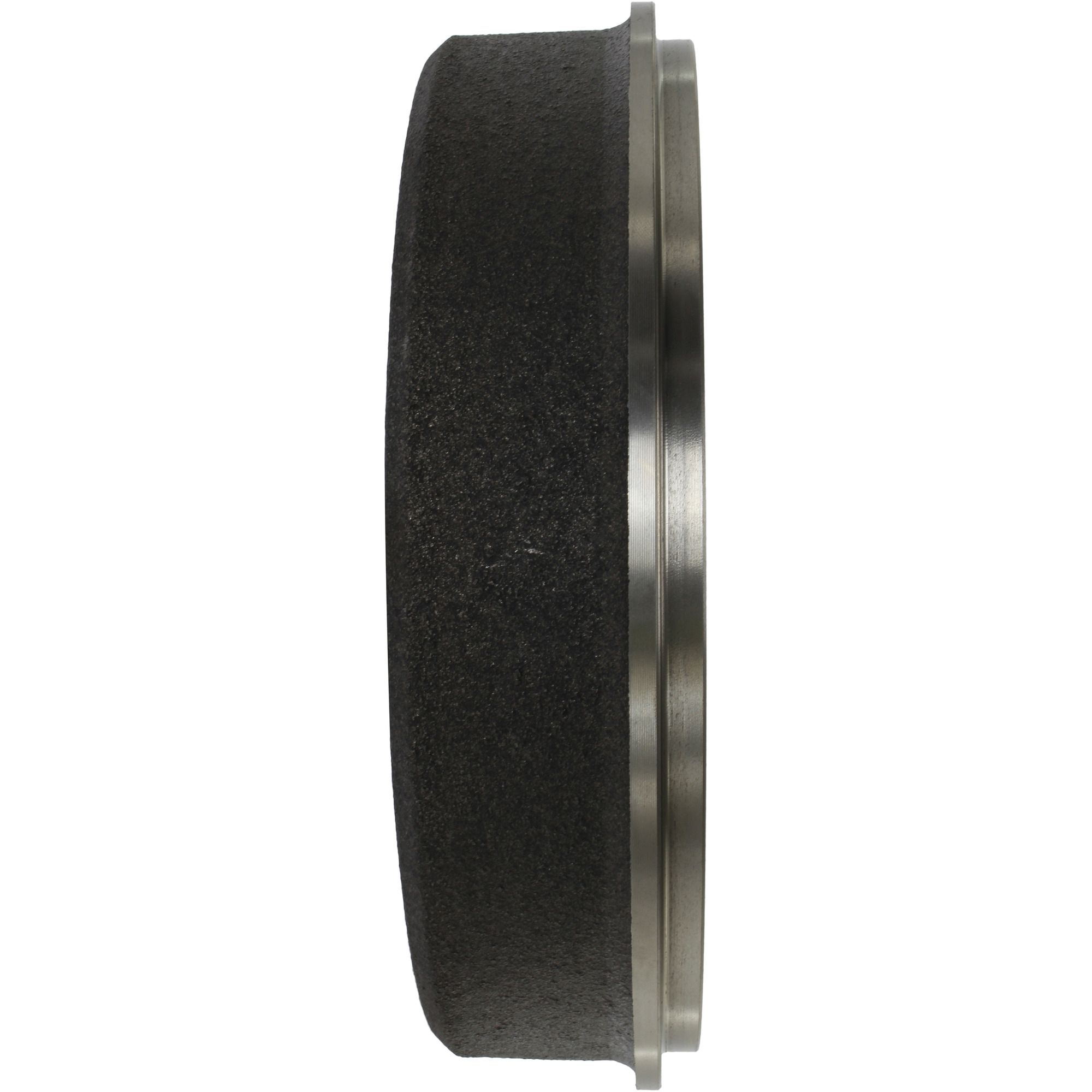

C-Tek Standard Brake Drum

Part # 123.63006 | Line Code: CEN

$71.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Friction Surface inches	2.35
Product Grade [cntrc]	Standard
Hub Hole / Register [cntrc] mm	105.664
Hub Hole / Register [cntrc] in	4.160
Weight [cntrc] kgs	7.159
Heavy Duty Supplier	Yes
Attribute ID (Type)	California Proposition 65
Nominal Drum Diameter	11.000
Height [cntrc] in	2.990
Mounting Type [cntrc]	Floating
Outer Cooling Fins	No
Height [cntrc] mm	75.946
Bolt Circle Diameter	139.7
Mounting Hole Diameter	0.630
Friction Surface Width [cntrc] mm	59.690
Bolt Hole Quantity	5
California Proposition 65	WARNING: Cancer and Reproductive Harm
Friction Surface mm	59.7
Bolt Circle Diameter [cntrc] in	5.500
Maximum Brake Diameter (Discard)	11.060
Weight [cntrc] lbs	15.750
Outside Diameter	12.360
Friction Surface Width [cntrc] in	2.350
Bolt Circle Diameter [cntrc] mm	139.700
Part Terminology	Brake Drum

Features & Benefits

C-TEK® brake rotors and pads provide exceptional quality and value. Utilizing world-wide manufacturing sources allows Centric Parts to provide the highest quality replacement parts while maintaining value.

Application Summary

AM General DJ5 1973-1972, Jeep Commando 1973-1967, DJ5 1973-1972, Gladiator 1969-1965, J-100 1973-1965, J-200 1965, J-210 1965, J-300 1965, J-2500 1973-1965, J-2600 1973-1965, J-3500 1970-1965, J-3600 1970-1965, J-4500 1973-1970, Jeepster 1971-1967, Wagoneer 1973-1965
